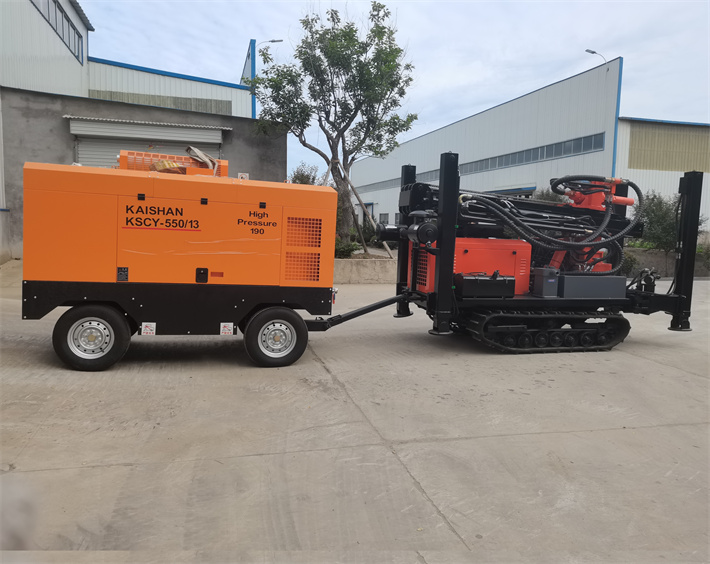

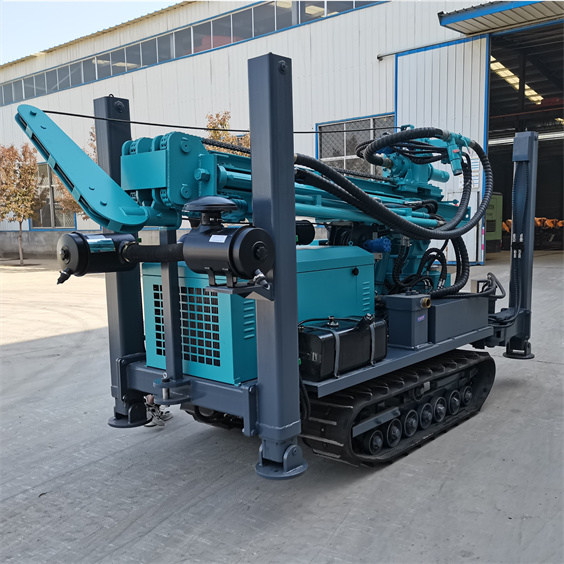

Rotary Head
Double hydraulic motor,Rotary Speed from 45rpm to 70rpm, Rotary Torque 3200-4600N.m
Hydraulic and Oil Hose
Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.
Hydraulic Cylinder
It is a mini hydrculic cylider,it is easy to load and un-load drill rod,drill hammer.

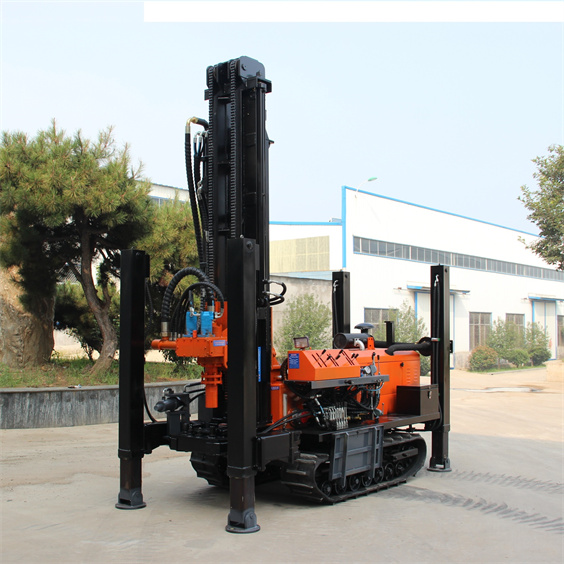

Hydraulic Leg
Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.
Without Winch
It can be installed Winch Lifting Force 1.5T.If install Winch,It’s easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer.”

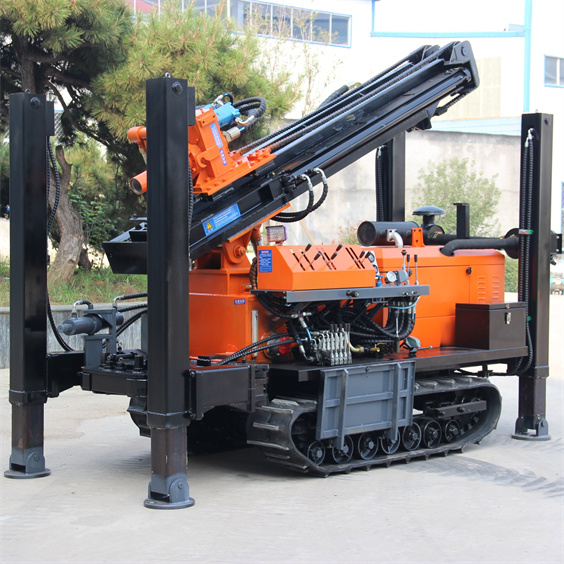

Powerful Drill Boom
Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 3.3m,used drill rod 1.5m,2m,3m
Operation Valve and Panel
The operation panel and joystick are in the same interface,it is simple and easy to operate.
Standing Platform
It is very easy to operate when running and walking

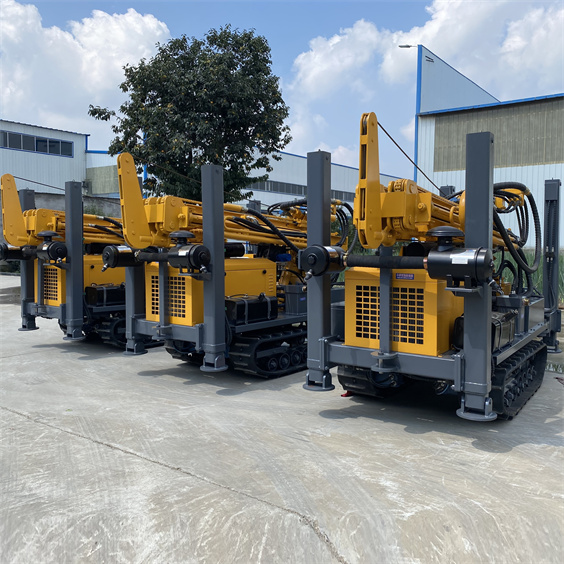

Rubber Crawler
Rubber Crawler,Economical, cost-effective, low maintenance cost.

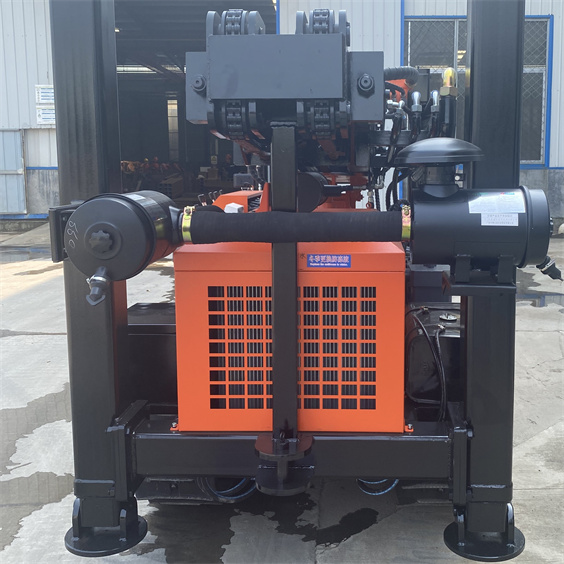

The Width of Hydraulic Leg
The width is up to 2.4m,As long as the width of truck is less than 2.4 m,the water well drill rig can be loaded and unloaded easily and freely.
|

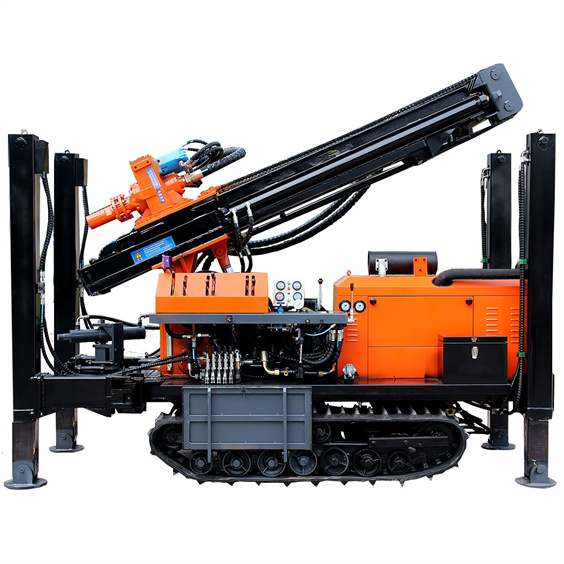

Model# |
*CNSW180QR* |
| Diesel Engine | Quanchai 55 kw /75 HP |
| Max Drilling Depth | 180m/590ft |
| Drilling Dia. | 105-254mm(4 1/8″-10″) |
| Working Pressure | 1.25-2.5MPa(181-365Psi) |
| Air consumption | 15-31m³/min(530-1095cfm) |
| Feed Stroke | 3.3m/11.2ft |
| Drill Rod Length | 1-3m/3.3-9.8ft |
| Drill Rod Dia. | Φ76,89,102mm |
| Lifting Force | 12T |
| Fast Lifting Speed | 20m/min |
| Fast Forwarding Speed | 40m/min |
| Rotary Torque | 3200-4600N.m |
| Rotary Speed | 45-70rpm |
| Winch Lifting Force | / |
| High Leg Stroke | 1.4m/4.6ft |
| Max.Wide of Leg | 2.4m/7.9ft |
| Drilling Efficiency | 10-35m/h |
| Walking Speed | 2.5km/h |
| Climbing Capacity | 30° |
| Weight | 4500kgs |
| Dimension | 3950×1630m×2250mm |
★ Optional:
Cummins Diesel Engine,Winch,Mud pump, Welder,Foad pump,Water-air quick valve,Adjustable rotary head,Ladder and support frame,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the gearbox and hydraulic motor,the hydraulic oil radiating separately,Add rubber block.
