The speed, torque, propulsion shaft pressure, reverse shaft pressure, propulsion speed and lifting speed can be adjusted at any time,to meet the needs of different drilling tools and different construction processes.
It is convenient for the drill pipe to be connected and unloaded, shortening the auxiliary time, and also facilitating the drilling with the pipe.
Various drilling processes can be used on such drilling rigs, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, cone drilling, heel drilling, and The core is being developed and so on. The rig can be equipped with mud pumps, foam pumps and generators according to user requirements. The rig also comes standard with a variety of winches.
Thanks to the full hydraulic and top drive rotary propulsion, it is suitable for various drilling processes and various drilling tools. It is easy to operate and flexible, with fast drilling speed and short auxiliary time, so the work efficiency is high.
Drilling on the rock is dominated by the DTH hammer drilling process, and the DTH hammer rock drilling operation is highly efficient, and the single-meter drilling cost is lower.

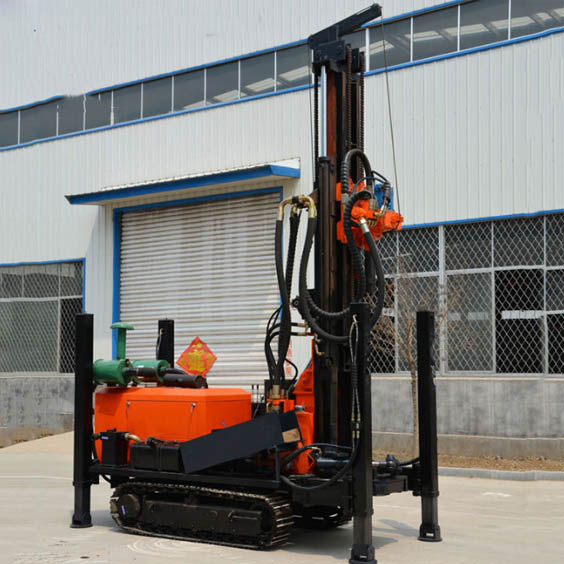

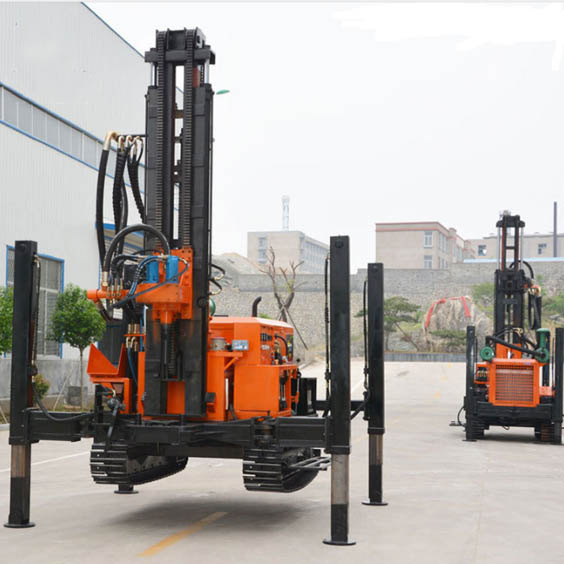

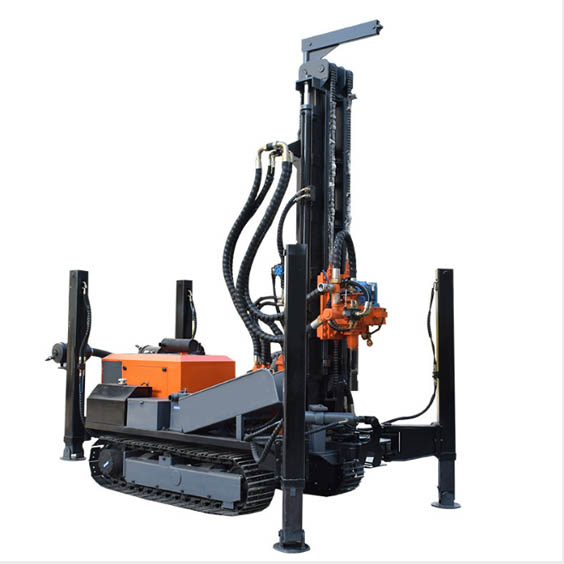

The high-legs are easy to load and transport, and can be directly loaded without a crane. Tracked walking is more suitable for muddy on-site movement.
The optimum impact efficiency of the various impactors has their optimum axial pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more matching axial pressure. At this time, the impact efficiency is higher.
Patented oil mister and oil mist pump. During the drilling process, the high-speed impactor is lubricated at all times to extend its service life to a greater extent.
It can be cusimised to crawler-type,trailer-type or truck mounted type.
| Model# | W200CA | W200CB |
| Diesel Engine | Yuchai 58 kw /79 HP | Yuchai |
| Max Drilling Depth | 200m/656ft | 200m/656ft |
| Drilling Dia. | 105-254mm(4 1/8″-10″) | 105-254mm(4 1/8″-10″) |
| Working Pressure | 1.25-2.5MPa(181-365Psi) | 1.25-2.5MPa(181-365Psi) |
| Air consumption | 15-31m³/min(530-1095cfm) | 15-31m³/min(530-1095cfm) |
| Feed Stroke | 3.4m/11.2ft | 3 |
| Drill Rod Length | 1-3m/3.3-9.8ft | 1.5/2/3 |
| Drill Rod Dia. | Φ76,89,102mm | Φ76/φ89/φ102 |
| Axial Pressure | 3.5T | 4 |
| Lifting Force | 7T | 15 |
| Fast Lifting Speed | 20m/min | 20 |
| Fast Fonwarding Speed | 40m/min | 40 |
| Rotary Torque | 5600N.m | 3500/4800 |
| Rotary Speed | 80rpm | 45/70 |
| Big secondary Winch Lifting Force | – | – |
| Small secondary Winch Lifting Force | 1.5T | – |
| High Leg Stroke | 1.3m/4.3ft | 1.3 |
| Drilling Efficiency | 10-35m/h | 10-35 |
| Walking Speed | 2.5km/h | 2.5 |
| Climbing Capacity | 25° | 30° |
| Weight | 5.7T | 5.8 |
| Dimension | 5400×1900m×2450mm | 4000×1750m×2450 |
| Application | Complicated geological conditions:Rock,Mud,Sand,Soil etc. | Complicated geological conditions:Rock,Mud,Sand,Soil etc. |
| Drilling Method | Top drive hydraulic rotary and propulsion,Reverse Circulation Drilling or Mud Pump Driling | Top drive hydraulic rotary and propulsion,Reverse Circulation Drilling or Mud Pump Driling |
| Hammer | 4″,5″,6″,8″,10″ DTH hammer | 4″,5″,6″,8″,10″ DTH hammer |
| Optional Unit | Mud Pump,Centrifugal Pump,Generator,Foam Pump | Mud Pump,Centrifugal Pump,Generator,Foam Pump |
