Rotary Head Without Winch
Double hydraulic motor,Rotary Speed from 45rpm to 70rpm, Rotary Torque 3200-4600N.m”It can be installed Winch Lifting Force 1.5T.If install Winch,It’s easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer.”
Powerful Drill Boom
Hydraulic and Oil Hose Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 3.3m,used drill rod 1.5m,2m,3m.Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.
Operation Valve and Panel
The operation panel and joystick are in the same interface,it is simple and easy to operate.
Hydraulic Cylinder
It is a mini hydrculic cylinder,it is easy to load and un-load drill rod,drill hammer.
Standing Platform
It is very easy to operate when running and walking
Steel Crawler
Steel crawlers can be used in a wider range and working conditions, service life longer. By controlling the speed, it’s easy to move, turn, climb, walk.
Hydraulic Leg
Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.
The Width of Hydraulic Leg
The width is up to 2.4m,As long as the width of truck is less than 2.4 m,the water well drill rig can be loaded and unloaded easily and freely.

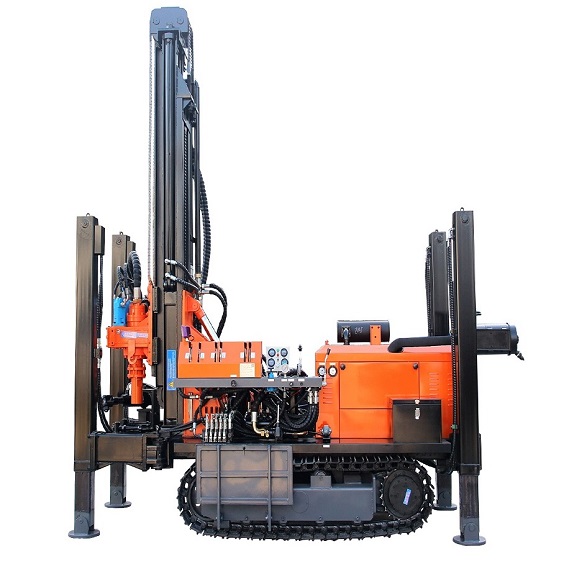

| Model# | *CNSW180Y* | ||||||
| Diesel Engine | Yuchai 60 kw /82 HP | ||||||
| Max Drilling Depth | 180m/590ft | ||||||
| Drilling Dia. | 105-254mm(4 1/8″-10″) | ||||||
| Working Pressure | 1.25-2.5MPa(181-365Psi) | ||||||
| Air consumption | 15-31m³/min(530-1095cfm) | ||||||
| Feed Stroke | 3.3m/11.2ft | ||||||
| Drill Rod Length | 1-3m/3.3-9.8ft | ||||||
| Drill Rod Dia. | Φ76,89,102mm | ||||||
| Lifting Force | 12T | ||||||
| Fast Lifting Speed | 20m/min | ||||||
| Fast Forwarding Speed | 40m/min | ||||||
| Rotary Torque | 3200-4600N.m | ||||||
| Rotary Speed | 45-70rpm | ||||||
| Winch Lifting Force | / | ||||||
| High Leg Stroke | 1.4m/4.6ft | ||||||
| Max.Wide of Leg | 2.4m/7.9ft | ||||||
| Drilling Efficiency | 10-35m/h | ||||||
| Walking Speed | 2.5km/h | ||||||
| Climbing Capacity | 30° | ||||||
| Weight | 5200kgs | ||||||
| Dimension | 4000×1630m×2250mm |
★ Optional:
Cummins Diesel Engine,Winch,Mud pump, Welder,Foad pump,Water-air quick valve,Adjustable rotary head,Ladder and support frame,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the gearbox and hydraulic motor,the hydraulic oil radiating separately,Add rubber block
