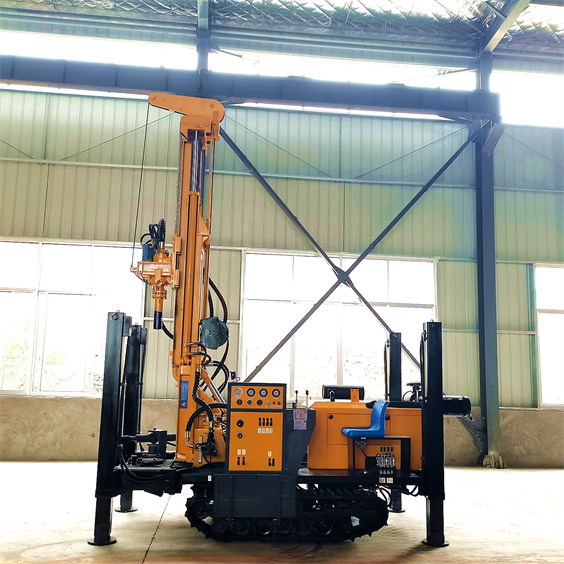

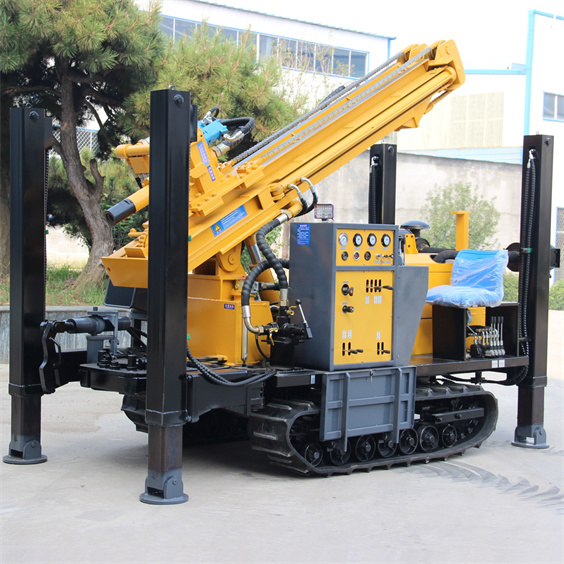

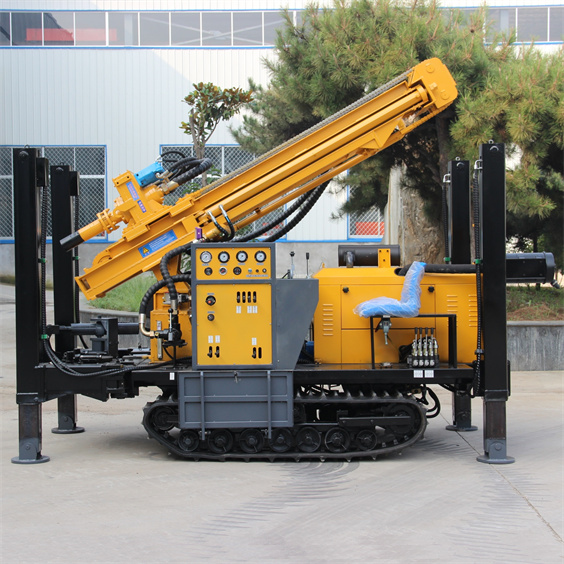

CNSW200QR Rubber Crawler Water Well Drill Rig

  • Diesel Engine:Quanchai 65 kw /88 HP
  • Max Drilling Depth:200m/656ft
  • Drilling Dia.:105-254mm(4 1/8"-10")

0086 18595738083

FEATURES

Rotary Head

Double hydraulic motor,Rotary Speed from 45rpm to 70rpm, Rotary Torque 3400-4700N.m

Winch

Winch Lifting Force up to 1.5T.It is easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer

Hydraulic and Oil Hose

Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.

Powerful Drill Boom

Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 3.3m,used drill rod 1.5m,2m,3m.

Drill Tools Box

There are enough space to place drill hammer,drill bit,adapter etc.

Operation Valve and Panel

The operation panel and joystick are in the same interface,it is simple and easy to operate.

Hydraulic Cylinder

It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.

Seat

It is safety and convenient when walking, backing, loading.

Standing Platform

It is very easy to operate when running and walking

Hydraulic Leg

Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.

Rubber Crawler

Rubber Crawler,Economical, cost-effective, low maintenance cost.

The Width of Hydraulic Leg

The width is up to 2.6m,As long as the width of truck is less than 2.6m,the water well drill rig can be loaded and unloaded easily and freely.

SPECIFICATIONS

Model# *CNSW200QR*
Diesel Engine Quanchai 65 kw /88 HP
Max Drilling Depth 200m/656ft
Drilling Dia. 105-254mm(4 1/8″-10″)
Working Pressure 1.25-2.5MPa(181-365Psi)
Air consumption 15-31m³/min(530-1095cfm)
Feed Stroke 3.3m/11.2ft
Drill Rod Length 1-3m/3.3-9.8ft
Drill Rod Dia. Φ76,89,102mm
Lifting Force 13T
Fast Lifting Speed 30m/min
Fast Forwarding Speed 60m/min
Rotary Torque 3400-4700N.m
Rotary Speed 45-70rpm
Winch Lifting Force 1.5T
High Leg Stroke 1.4m/4.6ft
Max.Wide of Leg 2.6m/8.5ft
Drilling Efficiency 10-35m/h
Walking Speed 2.5km/h
Climbing Capacity 30°
Weight 5000kgs
Dimension 3950×1750m×2250mm



★ Optional:

Cummins Diesel Engine,Mud pump, Welder,Foad pump,Water-air quick valve,Adjustable rotary head,Ladder and support frame,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the
