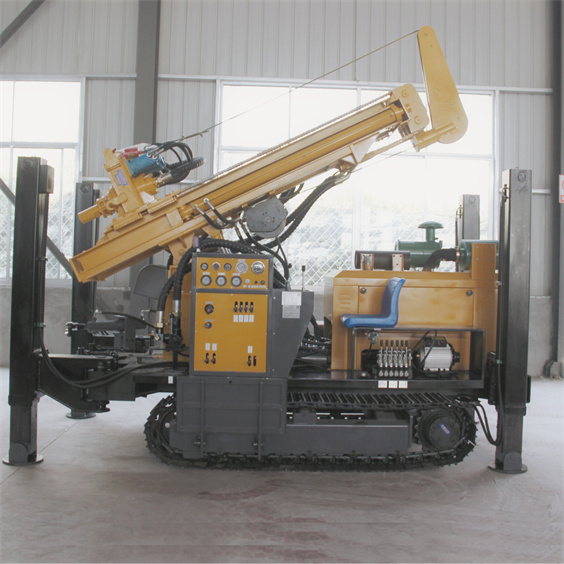

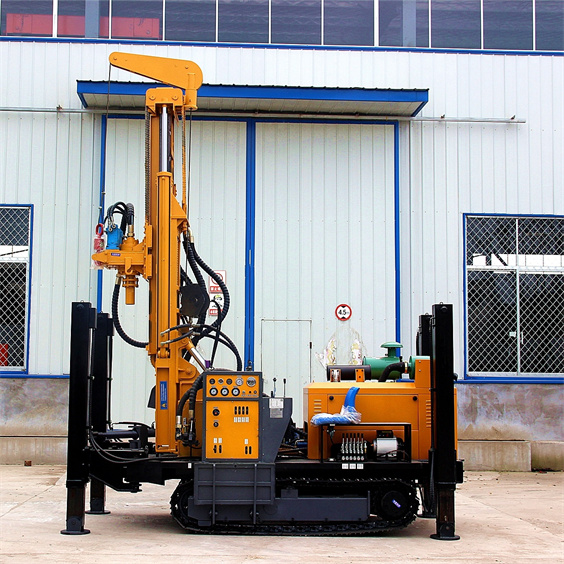

CNSW260F Steel Crawler Water Well Drill Rig

  • Diesel Engine:FAW 70 kw /95 HP
  • Max Drilling Depth:260m/853ft
  • Drilling Dia.:105-305mm(4 1/8"-12")

0086 18595738083

FEATURES

Rotary Head

Double hydraulic motor,Rotary Speed from 45rpm to 70rpm, Rotary Torque 4000-5300N.m

Winch

Winch Lifting Force up to 1.5T.It is easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer

Hydraulic and Oil Hose

Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.

Powerful Drill Boom

Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 3.3m,used drill rod 1.5m,2m,3m

Drill Tools Box

There are enough space to place drill hammer,drill bit,adapter etc.

Operation Valve and Panel

The operation panel and joystick are in the same interface,it is simple and easy to operate.

Welder

It is very convenient to weld casing pipe and others,it also can provide lighting.

Seat

It is safety and convenient when walking, backing, loading.

Hydraulic Cylinder

It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.

Standing Platform

It is very easy to operate when running and walking

Hydraulic Leg

Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.

The Width of Hydraulic Leg

The width is up to 2.73m,As long as the width of truck is less than 2.73 m,the water well drill rig can be loaded and unloaded easily and freely.

Steel Crawler

Steel crawlers can be used in a wider range and working conditions, service life longer. By controlling the speed, it’s easy to move, turn, climb, walk.

SPECIFICATIONS

Model# *CNSW260F*
Diesel Engine FAW 70 kw /95 HP
Max Drilling Depth 260m/853ft
Drilling Dia. 105-305mm(4 1/8″-12″)
Working Pressure 1.25-3.0MPa(181-435Psi)
Air consumption 15-35m³/min(530-1236cfm)
Feed Stroke 3.3m/11.2ft
Drill Rod Length 1-3m/3.3-9.8ft
Drill Rod Dia. Φ76,89,102mm
Lifting Force 15T
Fast Lifting Speed 24m/min
Fast Forwarding Speed 28m/min
Rotary Torque 4000-5300N.m
Rotary Speed 45-70rpm
Winch Lifting Force 1.5T
High Leg Stroke 1.4m/4.6ft
Max.Wide of Leg 2.73m/9ft
Drilling Efficiency 10-35m/h
Walking Speed 2.5km/h
Climbing Capacity 30°
Weight 6500kgs
Dimension 4000×1850m×2300mm



★ Optional:

Cummins Diesel Engine,Mud pump,Foad pump,Water-air quick valve,Adjustable rotary head,Ladder and support frame,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the gearbox and hydraulic motor,the hydraulic oil radiating separately,Add rubber block.
