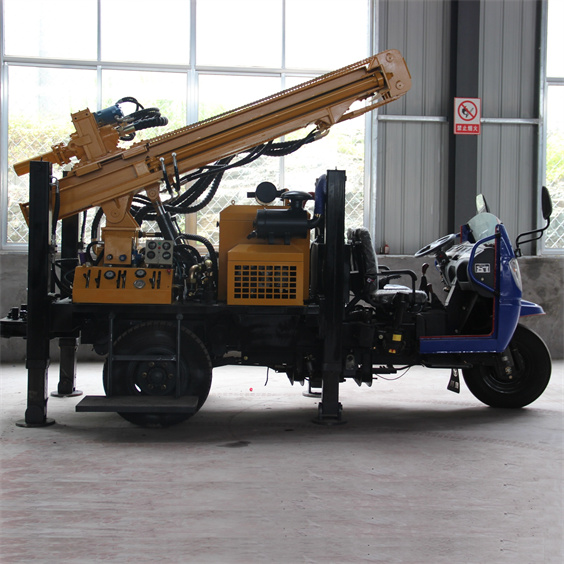

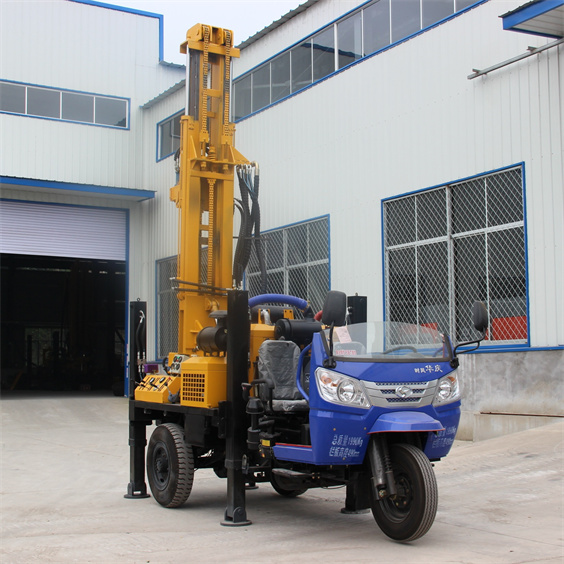

CNSW200QTC Tricycle Water Well Drill Rig

  • Diesel Engine:Quanchai 65 kw /88 HP
  • Max Drilling Depth:200m/656ft
  • Drilling Dia.:105-254mm(4 1/8"-10")

0086 18595738083

FEATURES

Rotary Head

Double hydraulic motor,Rotary Speed from 45rpm to 65rpm, Rotary Torque 3400-4700N.m

Without Winch

It can be installed Winch Lifting Force 1.5T.If install Winch,It’s easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer.

Hydraulic and Oil Hose

Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.

Powerful Drill Boom

Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 3.3m,used drill rod 1.5m,2m,3m

Operation Valve and Panel

The operation panel and joystick are in the same interface,it is simple and easy to operate.

Hydraulic Cylinder

It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.

Hydraulic Leg

Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.

Diesel Tricycle

Easy to walk, flexible, economical, cost-effective, practical, and durable frame

SPECIFICATIONS

Model# *CNSW200QTC*
Diesel Engine Quanchai 65 kw /88 HP
Max Drilling Depth 200m/656ft
Drilling Dia. 105-254mm(4 1/8″-10″)
Working Pressure 1.25-2.5MPa(181-365Psi)
Air consumption 15-31m³/min(530-1095cfm)
Feed Stroke 3.3m/11.2ft
Drill Rod Length 1-3m/3.3-9.8ft
Drill Rod Dia. Φ76,89,102mm
Lifting Force 13T
Fast Lifting Speed 20m/min
Fast Forwarding Speed 40m/min
Rotary Torque 3400-4700N.m
Rotary Speed 45-65rpm
Winch Lifting Force /
High Leg Stroke 1.4m/4.6ft
Max.Wide of Leg /
Drilling Efficiency 10-35m/h
Walking Speed 20-40km/h
Climbing Capacity 30°
Weight 4700kgs
Dimension 4350×1600m×2450mm

★ Optional:

Mud pump, Welder,Foad pump,Water-air quick valve,Adjustable rotary head,Ladder and support frame,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the gearbox and hydraulic motor,the hydraulic oil radiating separately,Add rubber block.
