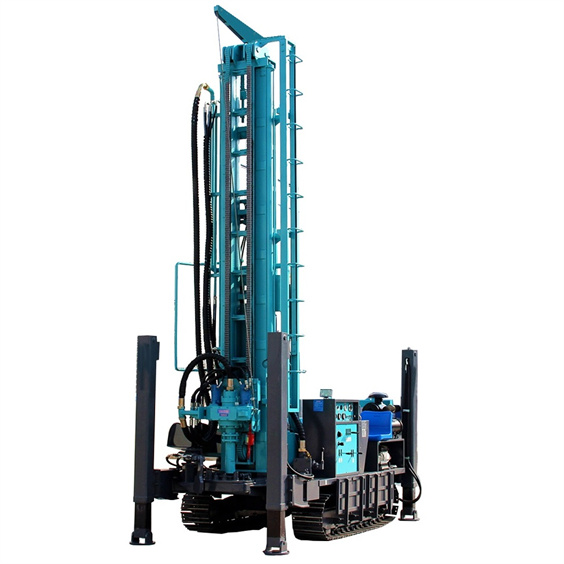

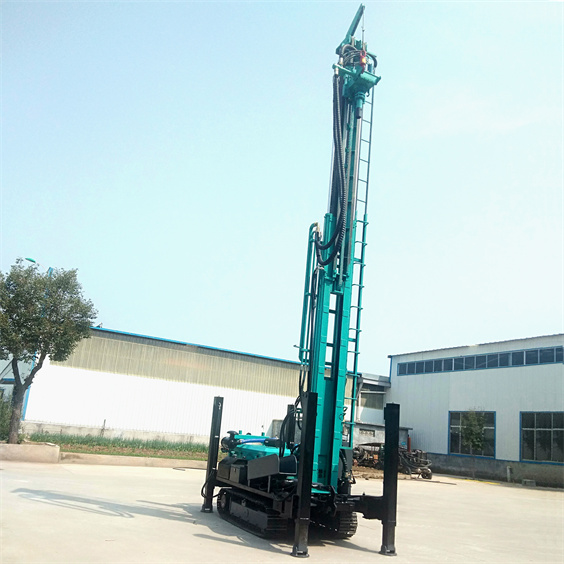

CNSW280Y Steel Crawler Water Well Drill Rig

  • Diesel Engine: Yuchai 75kw /100 HP
  • Max Drilling Depth: 280m/918ft
  • Drilling Dia.: 105-305mm(4 1/8"-12")

0086 18595738083

FEATURES

Rotary Head

Double hydraulic motor,Rotary Speed from 40rpm to 70rpm, Rotary Torque 4500-6000N.m

Winch

Winch Lifting Force up to 2T.It is easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer

Hydraulic and Oil Hose

Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.

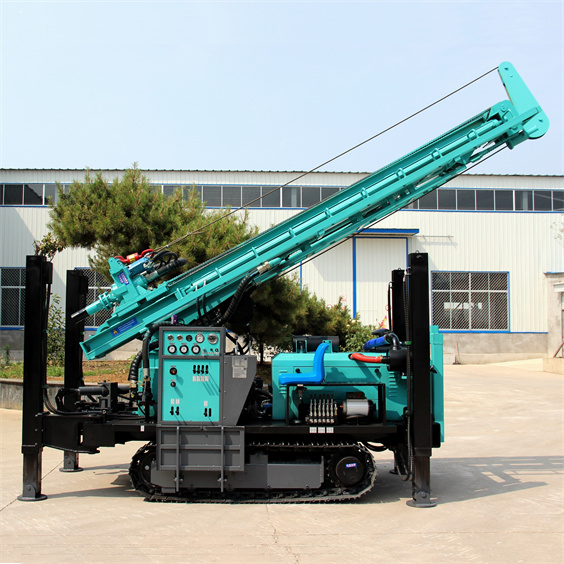

Powerful Drill Boom

Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 6.6m,used drill rod 1-6m

Drill Tools Box

There are enough space to place drill hammer,drill bit,adapter etc.

Operation Valve and Panel

The operation panel and joystick are in the same interface,it is simple and easy to operate.

Welder

It is very convenient to weld casing pipe and others,it also can provide lighting.

Seat

It is safety and convenient when walking, backing, loading.

Hydraulic Cylinder

It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.

Standing Platform

It is very easy to operate when running and walking

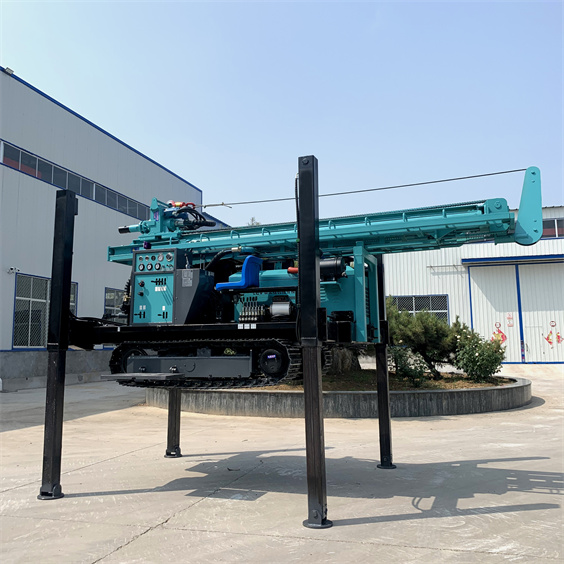

Hydraulic Leg

Hydraulic Leg stroke up to 1.4m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.

The Width of Hydraulic Leg

The width is up to 2.7m,As long as the width of truck is less than 2.7 m,the water well drill rig can be loaded and unloaded easily and freely.

Steel Crawler

Steel crawlers can be used in a wider range and working conditions, service life longer. By controlling the speed, it’s easy to move, turn, climb, walk.

SPECIFICATIONS

Model# *CNSW280Y*
Diesel Engine Yuchai 75kw /100 HP
Max Drilling Depth 280m/918ft
Drilling Dia. 105-305mm(4 1/8″-12″)
Working Pressure 1.25-3.5MPa(181-507Psi)
Air consumption 15-35m³/min(530-1236cfm)
Feed Stroke 6.6m/21.7ft
Drill Rod Length 1-6m/3.3-20ft
Drill Rod Dia. Φ76,89,102,114mm
Lifting Force 17T
Fast Lifting Speed 25m/min
Fast Forwarding Speed 30m/min
Rotary Torque 4500-6000N.m
Rotary Speed 40-70rpm
Winch Lifting Force 2T
High Leg Stroke 1.4m/4.6ft
Max.Wide of Leg 2.7m/9ft
Drilling Efficiency 15-35m/h
Walking Speed 2.5km/h
Climbing Capacity 30°
Weight 7600kgs
Dimension 5900×1850m×2360mm

★ Optional:

Cummins Diesel Engine,Mud pump,Foad pump,Water-air quick valve,Adjustable rotary head,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,Enlarge the gearbox and hydraulic motor,the hydraulic oil radiating separately,Add rubber block.
