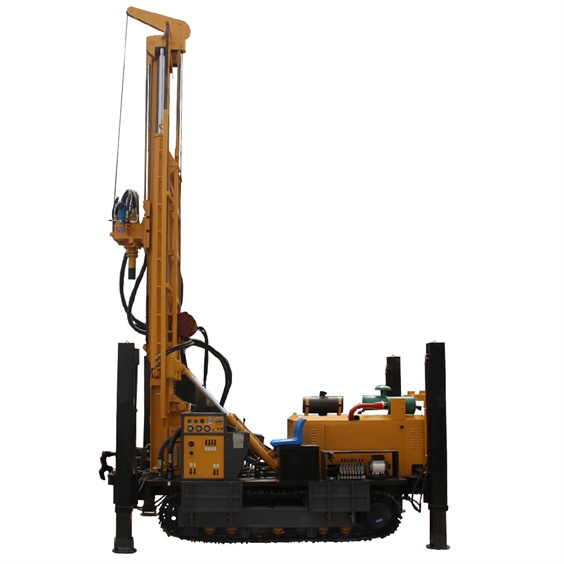

CNSW680C 680m Depth Steel Crawler Type
Features:
Rotary Head
Double hydraulic motor,Rotary Speed from 45rpm to 140rpm, Rotary Torque 8850-13150N.m
WinchWinch
Lifting Force up to 2T
It is easy to lift drill rod and hammer,and very convenient to un-loading drill rod and rock hammer
Hydraulic and Oil Hose
Each hydraulic and oil hose is covered with soft management set to make the hose service life longer.
Powerful Drill Boom
Composite boom, double hydraulic oil cylinder,long stroke,large tonnage.Feed Stroke up to 6.6m,used drill rod 1-6m
Drill Tools Box
There are enough space to place drill hammer,drill bit,adapter etc.
Operation Valve and Panel
The operation panel and joystick are in the same interface,it is simple and easy to operate.
Welder
It is very convenient to weld casing pipe and others,it also can provide lighting.
Foad Pump
It is suitable for deep hole.
Seat
It is safety and convenient when walking, backing, loading.
Hydraulic Cylinder.
It is a mini hydraulic cylinder,it is easy to load and un-load drill rod,drill hammer.
Standing Platform
It is very easy to operate when running and walking
Hydraulic Leg with Swing Arm Cylinder
Hydraulic Leg stroke up to 1.7m height,it is easy self-loading on truck. The powerful hydraulic cylinder is very well to fix the water well drill rig.
The Width of Hydraulic Leg
The width is up to 2.95m,As long as the width of truck is less than 2.95 m,the water well drill rig can be loaded and unloaded easily and freely.
Stronger Steel Crawler
Steel crawlers can be used in a wider range and working conditions, service life longer. By controlling the speed, it’s easy to move, turn, climb, walk.
| Model# | *CNSW680C* |
| Diesel Engine | Cummins 154kw /210 HP |
| Max Drilling Depth | 680m/2231ft |
| Drilling Dia. | 105-400mm(4 1/8″-15 3/4″) |
| Working Pressure | 1.25-6.5MPa(181-943Psi) |
| Air consumption | 15-53m³/min(530-1872cfm) |
| Feed Stroke | 6.6m/21.7ft |
| Drill Rod Length | 1-6m/3.3-20ft |
| Drill Rod Dia. | Φ76,89,102,114,127mm |
| Lifting Force | 30T |
| Fast Lifting Speed | 20m/min |
| Fast Forwarding Speed | 40m/min |
| Rotary Torque | 8850-13150N.m |
| Rotary Speed | 45-140rpm |
| Winch Lifting Force | 2T |
| High Leg Stroke | 1.7m/5.6ft |
| Max.Wide of Leg | 2.95m/9.7ft |
| Drilling Efficiency | 15-35m/h |
| Walking Speed | 2.5km/h |
| Climbing Capacity | 30° |
| Weight | 13000kgs |
| Dimension | 6300×2300m×2650mm |
★ Optional:
Cummins Diesel Engine,Mud pump,Water-air quick valve,Adjustable rotary head,Water inlet tee,Extubation machine two-way valve,Change the hydraulic leg stretch,the hydraulic oil radiating separately,Add rubber block.
