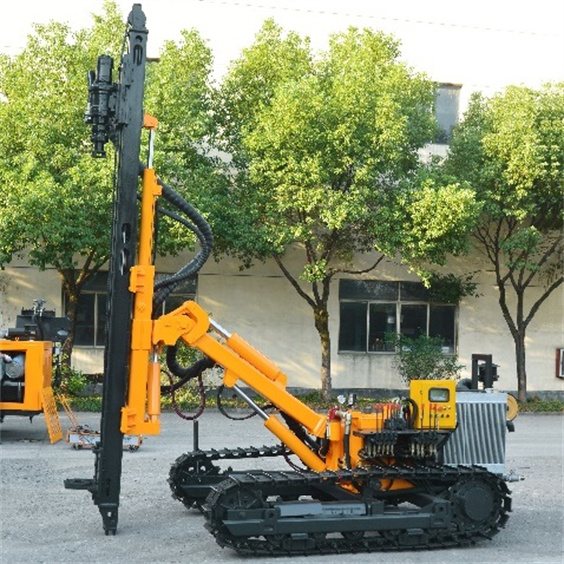

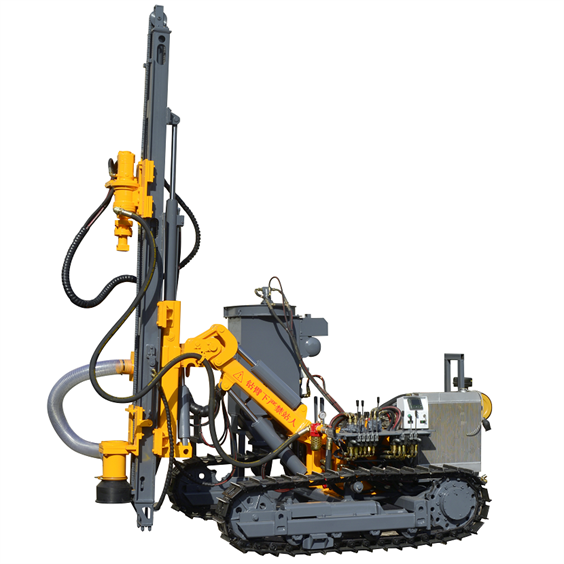

KG310/KG310H Surface Drilling Rig

  • KG310KG310H Surface Drilling Rig
  • Drilling Dia.: Φ76-110mm(3"-4 1/2")
  • Diesel Engine:Yuchai YCCA13T6-45,33.1kw/45hp

0086 18595738083

FEATURES

KG310/KG310H Surface Drilling Rig

Features:

Powerful Rotary Head

Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.

Strong Heavy Duty Feed Beam

New design positioning system,easier for operation in the worst situation.Cylinder & rope feed mechanism for smooth operation.Nylon slide piece for longer feed beam service life.

Flexible Boom

Multi-directional Drilling Design.For complex drilling conditions,360mm ground clearance for horizontal drilling applications,is suitably qualified for horizontal drilling at a low level.

Hydraulic System

The hydraulic system is upgraded, the hydraulic cylinder is more reliable, the system flow is increased, and the rotary drilling speed is increased

Dry Type Dust Collector

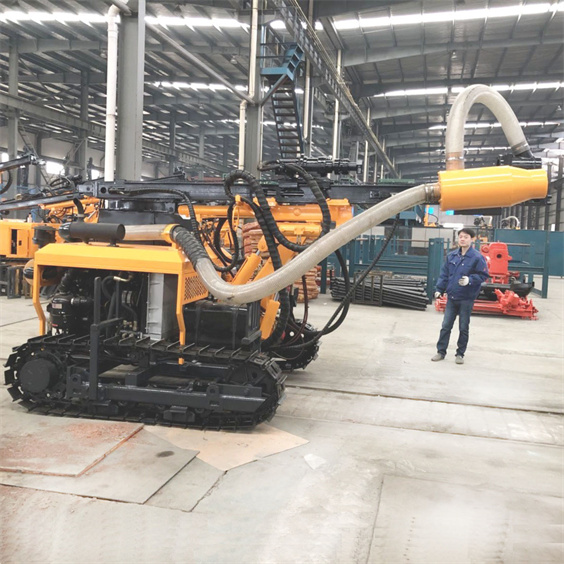

KG310H is with Dust Collector.It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.

Diesel Engine

Equipped with the Yuchai double-cylinder engine (China III),Reduce emissions and protect the environment.

Construction Steel Crawler

Equipped with speed reduction tramming system and standard excavator track for compact structure. Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate

Control Panel

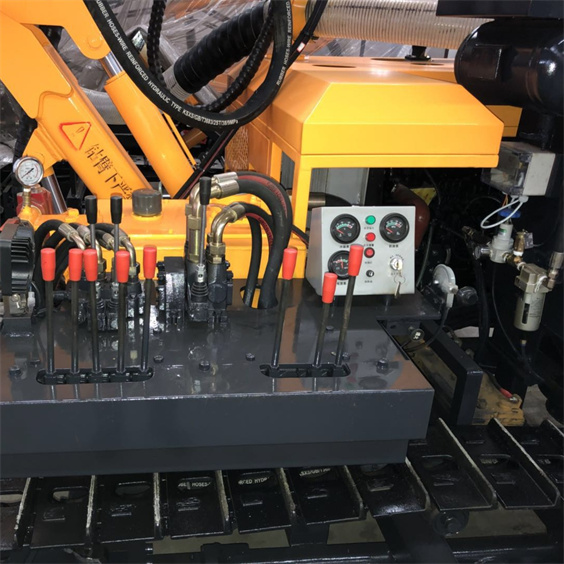

All controls integrated on the control panel for convenient operation by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.

Walking Hydraulic Motor

Steel ball hydraulic travel motor.Light weight, small size, large speed range, simple structure,long service-life, easy maintenance

SPECIFICATIONS

Model# *KG310* *KG310H*
Weight 4000kgs 4200kgs
Dimension 4650×2000m×2200mm 4650×2300m×2200mm
Diesel Engine Yuchai YCCA13T6-45,33.1kw/45hp /2400 r/min
Drilling Hardness f=6-20
Drilling Diameter Φ76-110mm(3″-4 1/2″)
Depth of Economical Drilling 20m / 6ft
Air Consumption 7-15.5m³/min(247-550cfm)
DTH Hammer Standard L3 (Optional:M3,K3)
Drilling Rod Standard Φ60X2000mm (Optional:Φ42/64X2000mm)
Drilling Bit Standard Φ90mm-L3
(Optional:Φ76/100/110mm-L3,Φ90mm-M3,Φ90/95/100/105mm-K3)
Rotary Speed 0-110rpm
Rotary Torque (Max.) 1650N.m(Max.)
Lifting Force 18KN
Method of Feed Oil Cylinder + Leaf Chain
Feed Stroke 2670mm
Traveling Speed 0-2.2km/h
Climbing Capacity ≦30°
Ground Clearance 250mm
Pitch Angle of Beam Down 145°,Up 55°,Total 190°
Swing Angle of  Boom Left 100°,Right 45°,Total 145°
Pitch Angle of Drill Boom Down 50°,Up 25°,Total 75°
Compensation Length of Beam 900mm
Maximum Height of Horizontal Hole 2650mm
Minimum Height of Horizontal Hole 360mm



★Recommended Air Compressors:

Diesel Engine Portable Screw Air compressor, LGCY-12/10,KSCY-425/10,KSCY-400/14.5,KSCY-550/13

Note: Air compressor selection subject to the hole diameter and air hose length.
