KGH3 Surface Drilling Rig
Features:
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst situation.Cylinder & rope feed mechanism for smooth operation.Nylon slide piece for longer feed beam service life.The guide rail is installed in an inclined way,making operation and observations easier

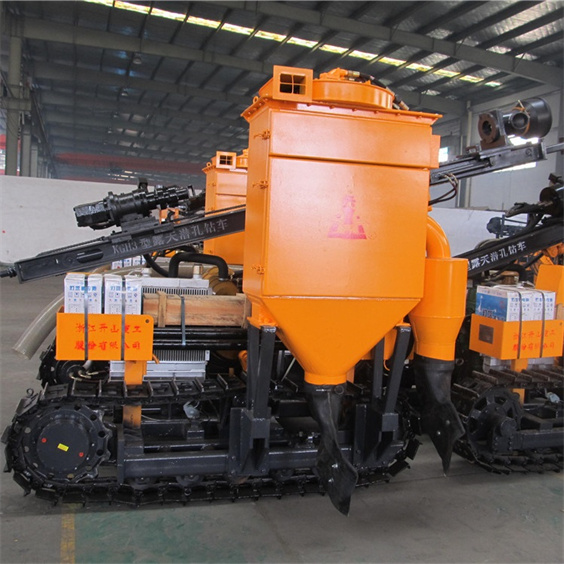

Dry Type Dust Collector
Dust Collector.It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinder is more reliable,the system flow is increased, and the rotary drilling speed is increased
Diesel Engine
Equipped with the Yuchai four-cylinder engine (China III,Opational:China II), Reduce emissions and protect the environment.
Construction Steel Crawler
Equipped with speed reduction tramming system and standard excavator track for compact structure. Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate

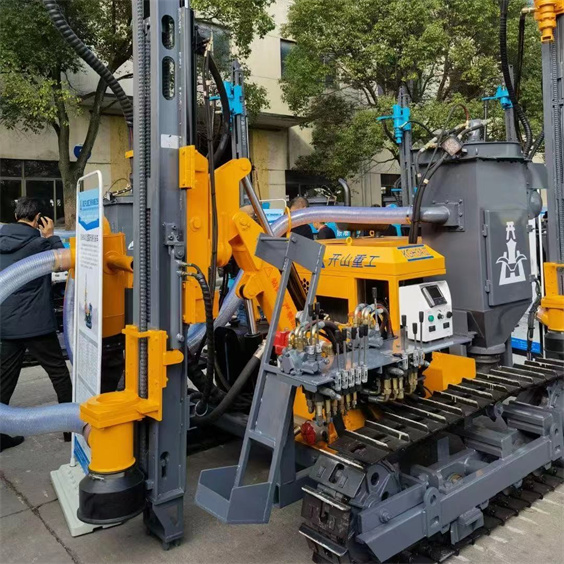

Control Panel
All controls integrated on the control panel,and near to carriage,it it very convenient operation and loading-unloading drill rod by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance
| Model# | *KGH3A* |
| Weight | 4200kgs |
| Dimension | 4450×2230m×2100mm |
| Diesel Engine | Yuchai YCD4R23T8-80,59kw/80hp /2400 r/min |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ80-115mm(3″-4 1/2″) |
| Depth of Economical Drilling | 25m / 7.6ft |
| Air Consumption | 9-13m³/min(318-460cfm) |
| DTH Hammer | Standard L3 (Optional:M3,K3,K4) |
| Drilling Rod | Standard Φ64X3000mm (Optional:Φ76X3000mm) |
| Drilling Bit | Standard Φ90mm-L3 (Optional:Φ76/100/110mm-L3,Φ90mm-M3,Φ90/95/100/105mm-K3,Φ105/110/115mm-K4) |
| Rotary Speed | 0-110rpm |
| Rotary Torque (Max.) | 1650N.m(Max.) |
| Lifting Force | 15KN |
| Method of Feed | Oil Cylinder + Leaf Chain |
| Feed Stroke | 2670mm |
| Traveling Speed | 0-2.5km/h |
| Climbing Capacity | ≦30° |
| Ground Clearance | 310mm |
| Pitch Angle of Beam | Down 12°,Up 105°,Total 185° |
| Swing Angle of Beam | Left 20°,Right 24°,Total 44° |
| Pitch Angle of Drill Boom | Down 35°,Up 60°,Total 90° |
| Compensation Length of Beam | 900mm |
★Recommended Air Compressors:
Diesel Engine Portable Screw Air compressor, LGCY-12/10,KSCY-425/10,KSCY-400/14.5,KSCY-550/13,KSCY-550/14.5
Note: Air compressor selection subject to the hole diameter and air hose length.
