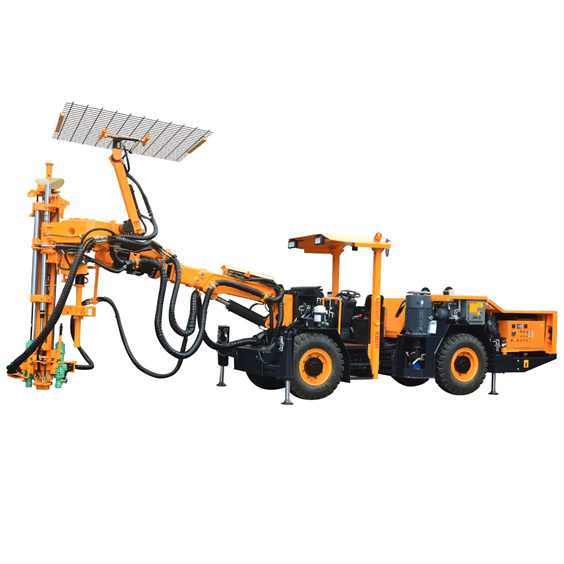

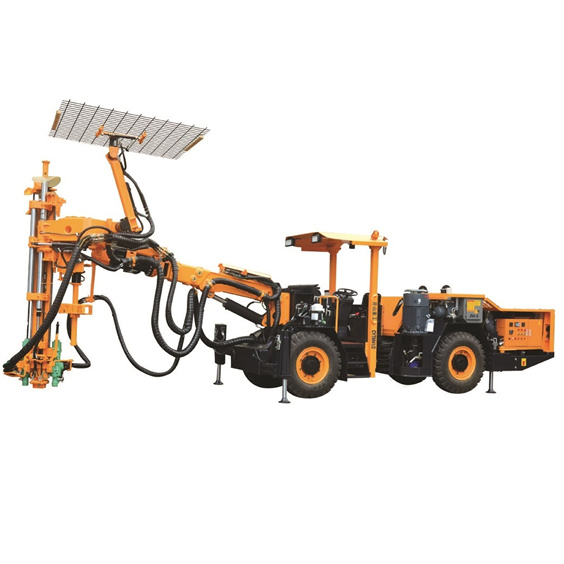

KM311 Top Hammer Tunnel Rock Bolting Drilling Rig

  • KM311 Tunnel Rock Bolting Drilling Rig
  • Climbing Capacity:≦14°
  • Width of tunnel:≧2.5m
  • Heigth of tunnel:≧3m
  • Length of bolt rod:According to the needs of the user.

0086 18595738083

FEATURES

KM311-Tunnel Rock Bolting Drilling Rig

Features:

KM311 Hydraulic rock bolting rig is specially designed for the construction of rock bolt in the pipe seam and it is capable of passing the section 2.5 meters wide and 2.2 meters high. It is suitably qualified for anchoring operations in tunnels whose section extends to a width of over 3 meters and a height of over 3 meters.



Complete functions. The beam have two working stations and it is equipped with a magazine having a storage capacity of 10 rock bolt rods,along with optional protective netting module; it is capable of performing the following tasks: drilling, netting and installation of rock bolting rod;

High safety. Operators are protected by the ceiling, far away from the danger area;

High efficiency. The stepped piston is used for the high-frequency rock drill and this can improve the transmission efficiency of impact wave and improve drilling speed and reduce the consumption of drilling tools and make it in good condition;

The drill rig provides a good view for the operator; the articulated chassis of four-wheel drive ensures the flexible, quick and safe driving in the narrow tunnel;

Considerable space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner; all the relevant parts are kept in good protection, thus making maintenance easy.

SPECIFICATIONS

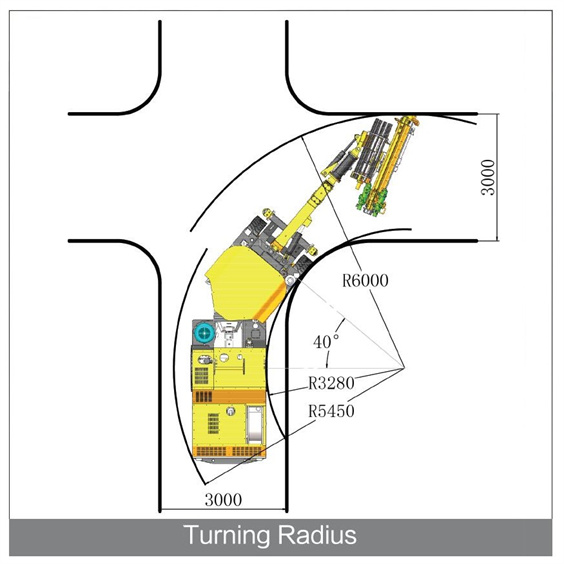

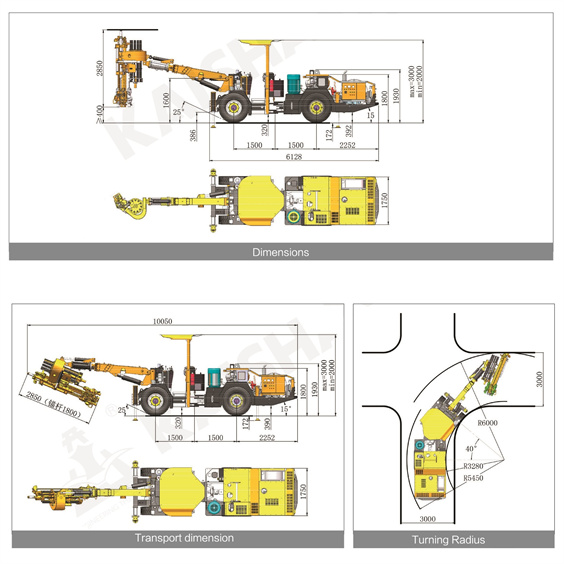

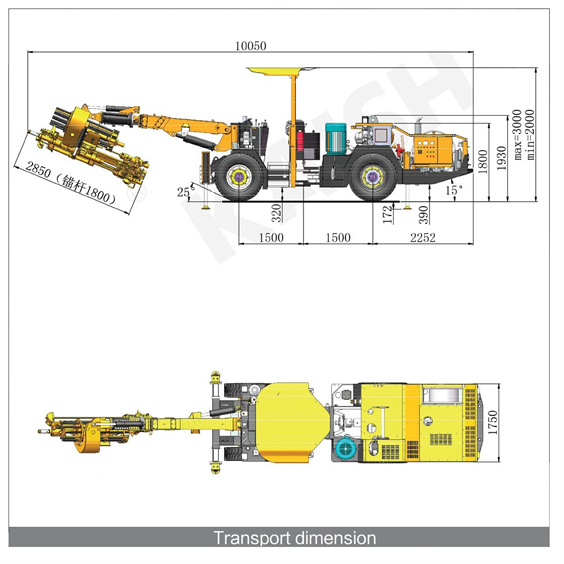

Dimensions and weight Air & water system
Length 10700mm Air compressor 1×JN5 Oil consumption of lubrication 180-250 g/h
Width 1750mm Capacity of air compressor 0.5m³/min
Height 2000/3000mm Pressure 6-8 bar Water pump 1×CR3
Weight Appr.12000kg Device of shank lubrication Electronic pulse lubrication pump Power 1.5kW
Tramming speed on flat ground 10km/h
Maximum climbing capacity 25%(14°) Air consumption of lubrication 0.3m³/min Capacity of water pump 3m³/h
Safety protection Chassis
Noise level <100dB(A) Diesel engine Cummins QSB3.9/60kW/2200rpm Travelling braking Wet brake
Lifting safety roof FOPS and ROPS certificate Exhaust purification Exhaust catalyst Parking braking Web multidisc brake
Drill boom system
Model K26F Drive system Four-wheel drive system with wet axle

(closed travelling system)

Fuel tank 60L
Boom extension 1200mm
Drilling system Electric hydraulic power unit
  Dilling Bolt Rod Install Motor 45kW
凿Rock drill 1×HC25/R32 1×HC25/R32 Impact/Feed/Positioning Axial variable displacement piston pump
Impact power 8KW 8KW Rotation Gear pump
Impact flow 65L/min 65L/min Filter fineness 10 μ
Impact pressure 150bar 150bar Hydraulic oil tank 240L
Maximum rotary pressure 175bar —— Hydraulic cooler Water cooler
Impact Frequency 55-65Hz 55-65Hz Working voltage 380V
Torque 325Nm —— Frequency 50Hz
Hole diameter 32-51mm Starting method Star-triangle
Beam rotation 360° Cable reel 1×K440
Feed extension 480mm length of reel cabling 100m
Applicable height of tunnel Bolt rod length +1700mm Cable specifications 3×25+3G6
