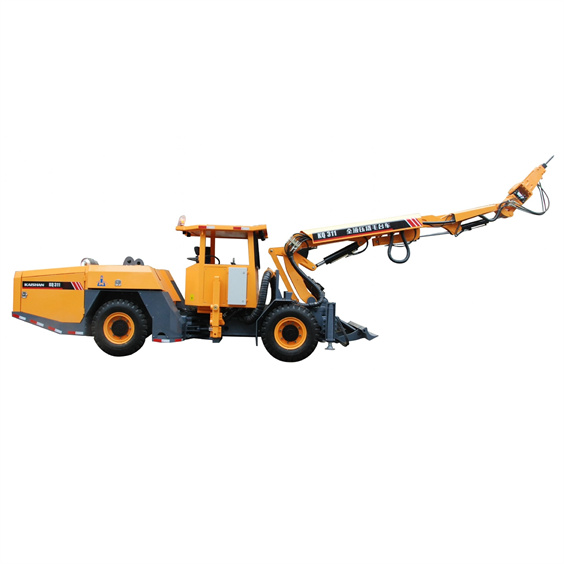

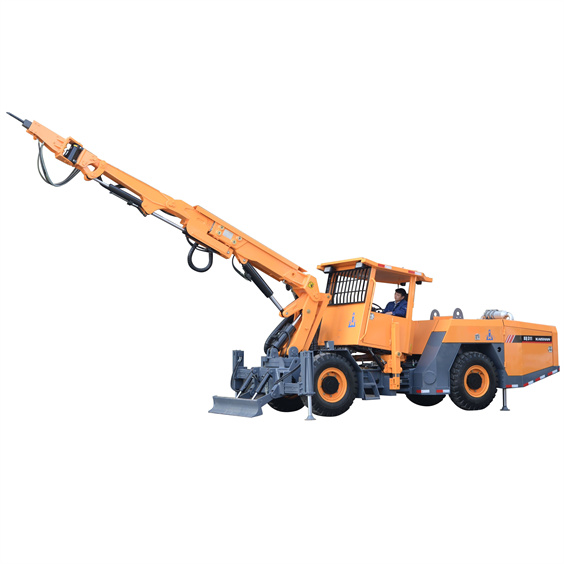

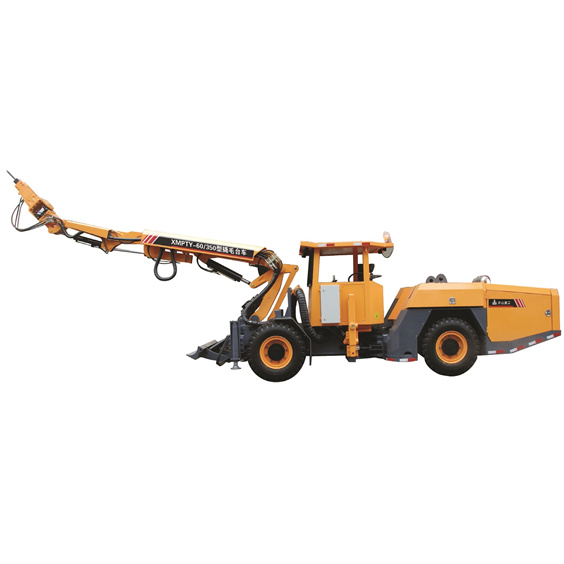

KQ311- Tunnel Top-hammer Scaling Drilling Rig
Features:
KQ311 hydraulic scaling rig is drven by the China stageⅢ diesel engine. It is mainly suitable for scaling operations in tunnels and caves of metal mines and various underground projects. The folding arm is fitted with the hydraulic hammer and translation mechanism driven by the rotating oil cylinder and it is capable of all-round operations of working surface, top plate, side wall and base plate. Meanwhile, proportion pilot control is applied to the hydraulic system, characterized by flexible manipulation and smooth operations. The equipment can considerably improve the scaling efficiency and safety based on compact structure, excellent mobility, small turning radius and powerful climbing capacity.

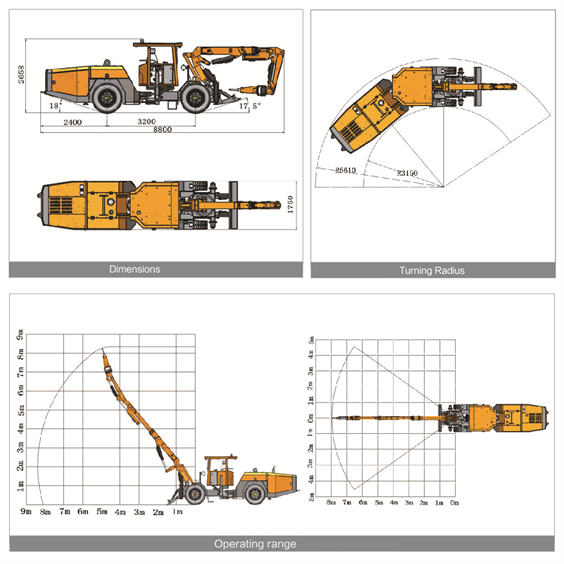

| Dimensions | Length 8800 mm | Hydraulic hammer | SOOSAN SB30 |
| Width 1750mm | Impact energy | 350J | |
| Height 2650 mm | Impact frequency | 9-16Hz | |
| Weight | 12000 kg | Drive flow | 25-40L/Min |
| Engine | Cummins QSB3.9-C80-31 | Working pressure | 90-125Bar |
| Power/ speed | 60 kW/2200 rpm | Angle of swing arm | ±30° |
| /Exhaust purification | Exhaust catalyst | Pitch angle of translational arm | 45° |
| Drive system | Closed hydraulic system for four-wheel driving | Lifting angle of mid-arm | 60° |
| Pitch angle of front arm | 95° | ||
| Swing angle | ±6° | Pitch angle of hydraulic hammer | 120° |
| Tires | 11.00-20 | Angle of swing cylinder | ±90° |
| Steering angle | ±40° | Drill arm expansion and contraction | 1200mm |
| Turning radius (inner/outer) | 3510/5610 | Maximum working height | 8300mm |
| Travelling braking | Wet brake | Maximum working width | 8800mm |
| Maximum tramming speed | 10km/h | Backward angle of cab | 15° |
| Maximum climbing angle | 25％（14°） | Power of water pump | 0.5Kw |
| Wheelbase | 3200mm | Flow of water pump | 2L/Min |
| Wheel tread | 1400mm | Cab lift | 400mm |
| Ground clearance | 300mm | Lifting safety roof | FOPS and ROPS certificate |
