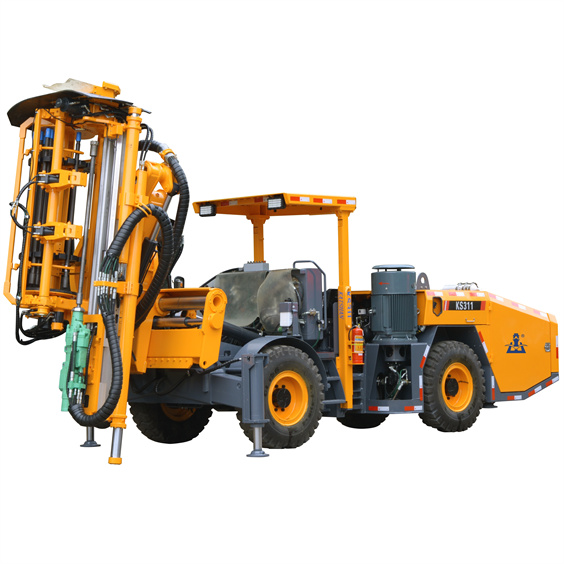

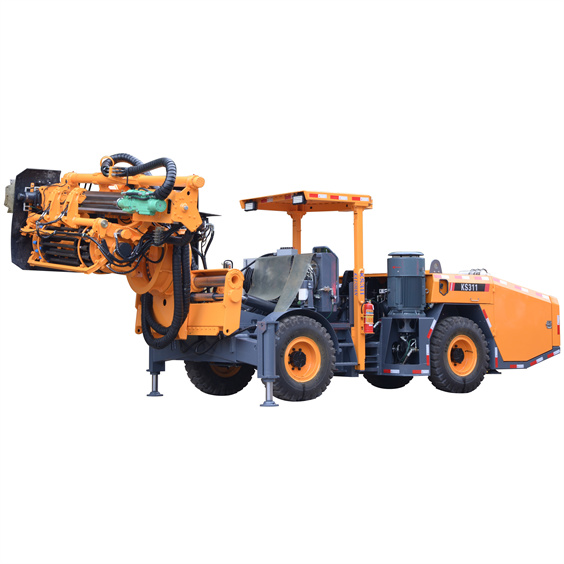

KS311-Tunnel Top-hammer Mining Drilling Rig
Features:
The KS311 Hydraulic long-hole drilling rig is mainly used for blast drilling of medium-length hole mining and supporting drilling of anchor cable. Both the applicable height and width of tunnels fall in the range of 3.5m-5m. The support for the drill boom is capable of 360-degree rotation. In combination with swing boom and translational guide rail, it is capable of 360-degreee drilling and parallel drilling within three meters, thus meeting the requirements of various mine drillings.
The automatic rod-changing system has a storing capacity of 27 drill rods and the drilling depth can reach as far as 42 meters.
The front and rear of the advancing beam are fitted with hydraulic supporting cylinders for smooth drilling. It is fitted with the hydraulic guiding cylinders and thus ensures the drilling straightness as good as possible.
The trolley-type workbench with a good sight is adopted; and the wireless remote controller can serve as an option.
The articulated mining chassis of closed hydraulic drive is suitable for small and medium-sized tunnels.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of ipacct wave and drilling speed and reduce the consumption of drilling tools and make it in good condition.
| Techinical parameters | Air & water system | |||||||||||||

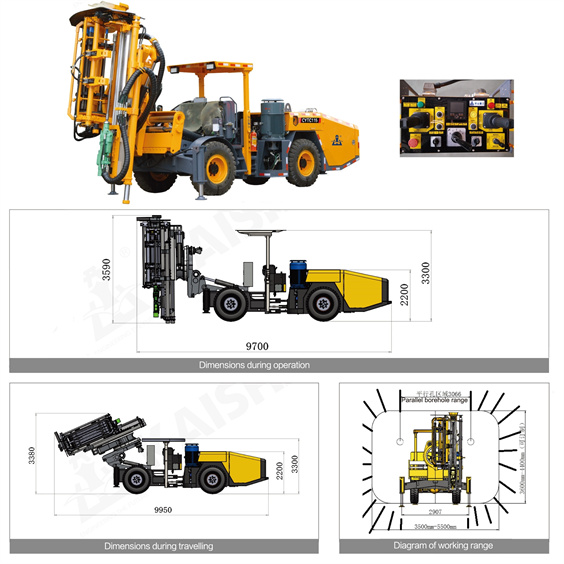

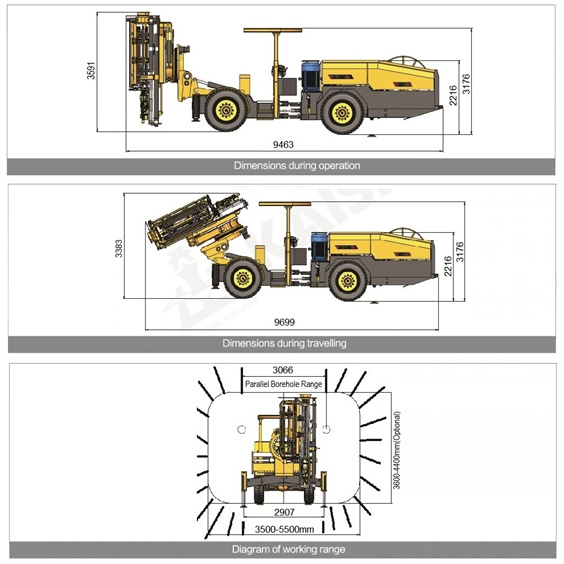

| Length | 9700mm | Air compressor | 1×JN4 | Oil Consumption of lubrication | 180-250 g/h | |||||||||
| Width | 2300mm | Capacity of air compressor | 0.5 m3/min | |||||||||||
| Height | 3300 mm | Pressure | 6-8bar | Water pump | 1×CR10 | |||||||||
| Weight | Appr. 16000㎏ | Device of shank lubrication | Electronic pulse lubrication pump | Power | 5.5kW | |||||||||
| Tramming speed on flat ground | 10km/h | Air consumption of lubrication | 0.3 m 3/min | Capacity of water pump | 8m3/h | |||||||||
| Maximum climbing capacity | 25% (14°) | Chassis | ||||||||||||
| Safety protection | Diesel engine | Cummins QSB3.9-C125/93kW
/2200rpm |
Steering mechanism | Articulated steering: ±40° | ||||||||||
| Noise level | ＜100dB(A) | |||||||||||||
| Lifting safety roof | FOPS and ROPS certificate | Exhaust purification | Exhaust catalyst | Travelling braking | Double-circuit hydraulic brake | |||||||||
| Electric hydraulic power unit | ||||||||||||||
| Drive system | Closed travelling system of four-wheel drive | Parking braking | Wet multidisc brake of reducer | |||||||||||
| Motor | 75kW three-phase motor | Swing angle | Swing of rear axle:±10° | Fuel tank | 90L | |||||||||
| Impact /Feed/ Positioning | Axial variable displacement piston pump | Tires | 12.00-20 | |||||||||||
| Rotation | Gear pump | Drilling system | ||||||||||||
| Filter Fineness | 10μ | Model of rock drill | 1×HC95LQW | Hole diameter | 64-76 | 89-102 | ||||||||
| Hydraulic oil tank | 240 L | Impact power | 24kW | Thread of drill rod | T38 | T45 | ||||||||
| Hydraulic cooler | water cooler | Impact flow | 138L/min | Drilling depth | 42m | 42m | ||||||||
| Working voltage | 380V | Impact pressure | 200bar | Pitch angle of advancing beam | Front: 20°, back: 65° | |||||||||
| Frequency | 50HZ | Maximum rotary pressure | 210bar | Ring angle | 360° | |||||||||
| Starting method | Star-triangle | Impact Frequency | 48-57 Hz | Rang of Parallel holes | 1500mm each side | |||||||||
| Cable reel | 1×K440 | Torque | 955Nm | Length of drill rod | 1525mm | 1830mm | ||||||||
| Length of reel cabling | 80m | Shank thread | T38、T45 | Length of advancing beam | 3500mm | 3800mm | ||||||||
| Cable specifications | 3×50+3G10 | Feed extension | 1200mm | 1200mm | ||||||||||
