KSZJ,LGZJ Series Screw Air Compressor Suitable for Matching with Multifunctional Drilling Rigs for Geothermal Water Wells,Suitable for Cobalt Exploration Operations in Oil and Gas Fields
Features:

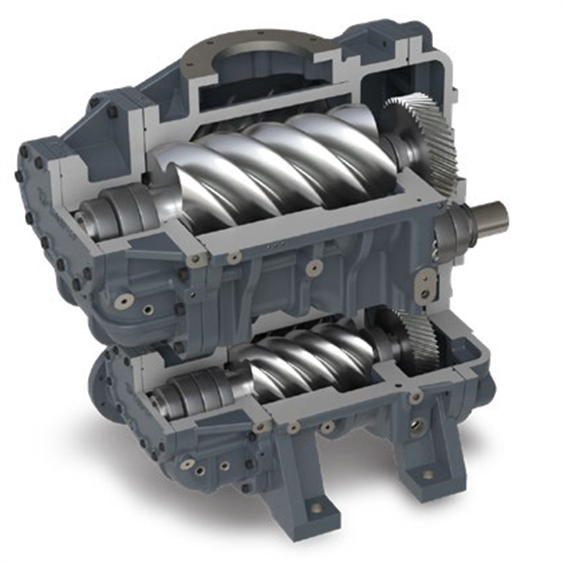

SKY Patented Screw Air-end
Designed according to the maximum pressure of 40bar
Rotor profile: patented rotor profile, highest efficiency
Two-stage compression: flexible design corresponding to poppet valve, global invention patent
Heavy-duty design, SKF bearings, direct drive, no gear noise
Optimal structure, highest reliability

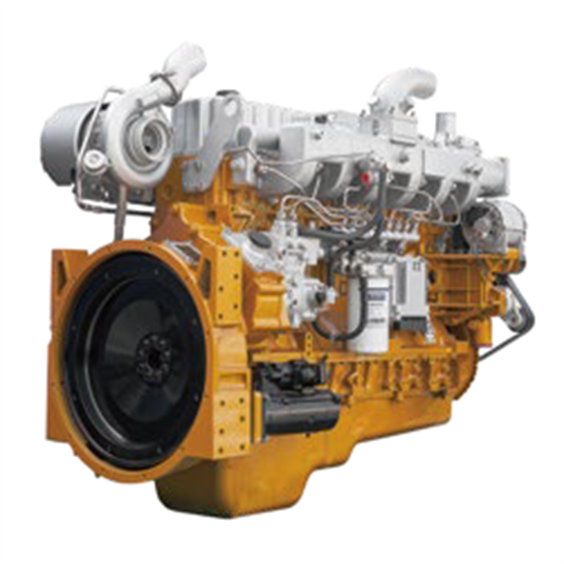

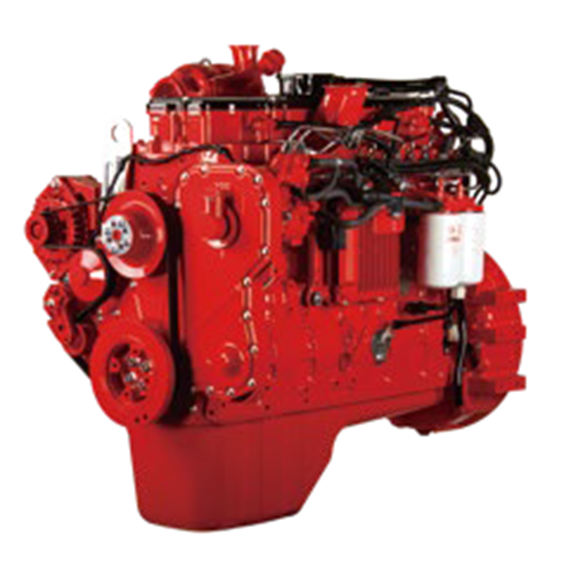

Heavy-Duty Diesel Engine
It is matched with Yuchai and other EU3A heavy-duty diesel engines.
Realize the best combustion state in the whole range of engine operation.
The product has higher reliability, stronger power, and better fuel economy.
Dual Working Mode Switching Design
For example: The user can choose to work under 33 m³/min & 25bar working conditions, and can also choose to operate under 26 m³/min and 35bar working conditions. It is convenient and fast to switch between each other.
Computer Control System
Operating speed, air supply pressure, oil pressure, exhaust temperature, coolant temperature, fuel level and other operating parameters are displayed throughout the process.It has self-diagnostic failure, alarm and shutdown functions to ensure the safe operation of the machine when unattended.
Optional remote network monitoring system, you can check the running status of the machine even if you are sitting in the office
Efficient cooling system
The latest achievements of the North American R&D Center ensure that the compressor is always in the bestoperating condition. Independent oil, water, and air coolers are designed with large-diameter fans to adapt to severe cold and hot climates

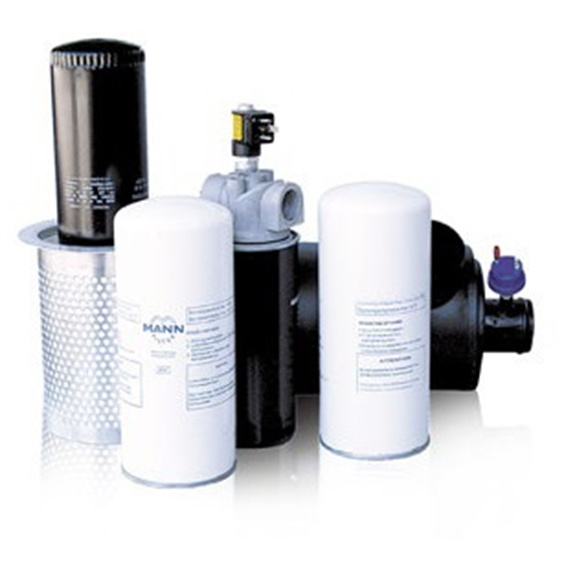

Triple Filtration System
The patented, maintenance-free centrifugal air pre-filter filters out more than 90% of dustand impurities, which prolongs the maintenance and replacement cycle of the filter element by5 times; the precision filter layer of the cyclone main air filter removes the remaining dust toensure that the machine is not worn; safety The filter element allows the machine to performair filter maintenance without stopping the machine to ensure the safe operation of the machine.Suitable for continuous operation in harsh environments such as deserts and dust
Reduce the influence of too much or too little oil in the separator on the oil content of the compressed air, and always keep the oil content of the compressed air below 3ppm.Clean compressed air is conducive to the safe operation of air-consuming equipment.
Ensure minimal wear on moving parts. Multiple fuel filter devices to protect the reliability of the engine fuel injection system
Optional Value-Added System
The water pump of the fuel heater pumps the coolant in the engine body to the heat exchanger. The fuel pump pumps the fuel in the fuel tank to the burner and burns. Through the continuous circulation of heat, the temperature of the coolant, the whole machine and the lubricating oil Continuous improvement to ensure the starting performance of the diesel engine in severe cold and plateau environment.
Ensure that the outlet air temperature is not higher than the ambient temperature of 15°C,which is especially suitable for supporting operations with equipment that requires intake air temperature such as turbochargers.
LGZJ Series
Model | Capacity (F.A.D) | Working Pressure | Diesel Engine | Air Outlet | Weight | Size | ||
m³/min | cfm | bar | Psi | kg | (L*W*H)mm | |||

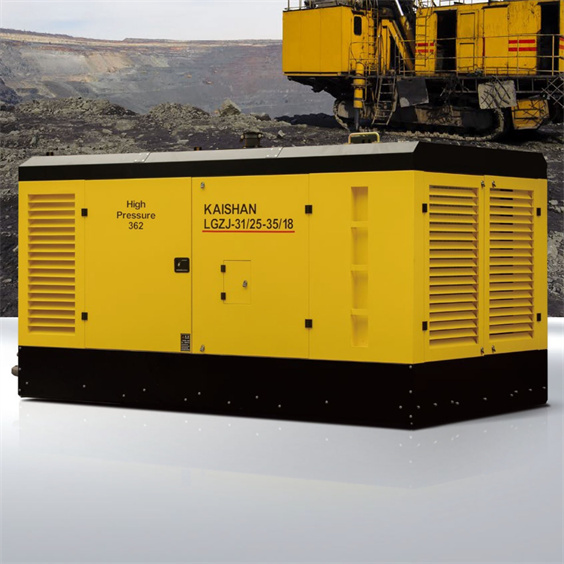

LGZJ-31/25-35/18 | 31-35 | 1095-1100 | 25-18 | 363-261 | YuChai 400HP | G2x1,G3/4×1 | 4100 | 3650*2000*2200 |

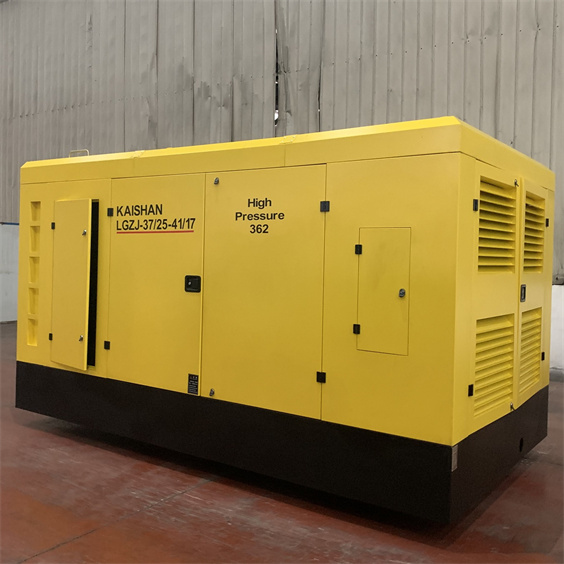

LGZJ-37/25-41/17 | 37-41 | 1307-1448 | 25-17 | 363-247 | YuChai 560HP | G2x1,G3/4×1 | 4800 | 3800*2200*2320 |
LGZJ-36/30-41/20 | 36-41 | 1271-1448 | 30-20 | 435-290 | YuChai 560HP | G2x1,G3/4×1 | 4800 | 3800*2200*2320 |
LGZJ-36/30-41/20K | 36-41 | 1271-1448 | 30-20 | 435-290 | Cummins 550HP | G2x1,G3/4×1 | 4800 | 3800*2200*2320 |
KSZJ Series
Model | Capacity (F.A.D) | Working Pressure | Diesel Engine | Air Outlet | Weight | Size | ||
m³/min | cfm | bar | Psi | kg | (L*W*H)mm | |||
KSZJ-15/14.5 | 15 | 530 | 14.5 | 210 | Yuchai 190HP | G2x1,G3/4×1 | 2100 | 2600*1520*1800 |
KSZJ-18/17 | 18 | 636 | 17 | 247 | YuChai 260HP | G2x1,G3/4×1 | 2700 | 3000*1800*2000 |
KSZJ-18/17A | 18 | 636 | 17 | 247 | YuChai 220HP | G2x1,G3/4×1 | 2600 | 3000*1800*2000 |

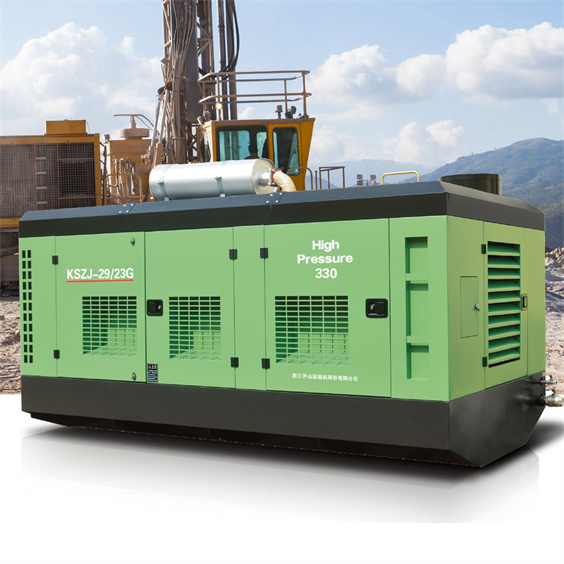

KSZJ-29/23G | 29 | 1024 | 23 | 334 | YuChai 400HP | G2x1,G3/4×1 | 4050 | 3500*1950*2030 |
KSZJ-29/23-32/17 | 29-32 | 1024-1130 | 23-32 | 334-464 | YuChai 400HP | G2x1,G3/4×1 | 4050 | 3500*1950*2030 |
KSZJ-31/25-34/17 | 31 | 1095 | 25 | 363 | YuChai 550HP | G2x1,G3/4×1 | 4500 | 3500*2100*2200 |
★*Related product parameters are subject to change without notice.
