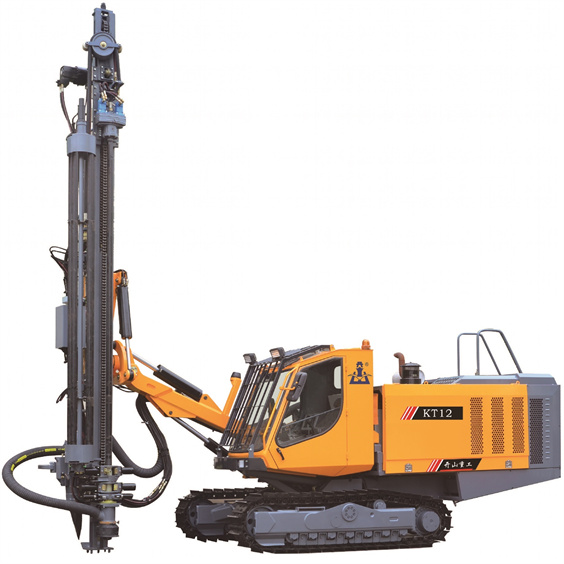

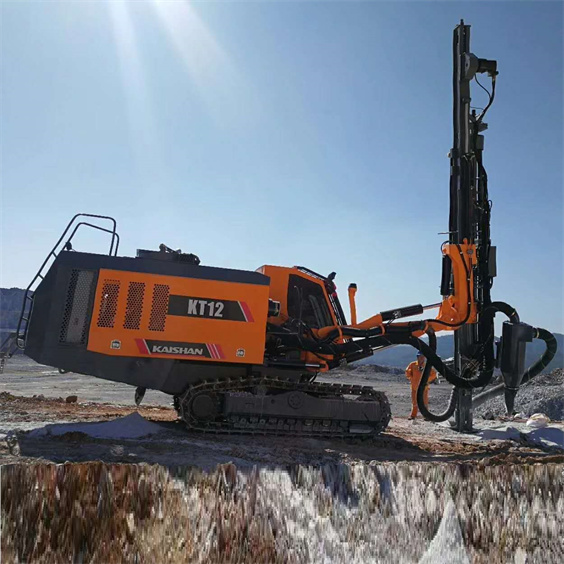

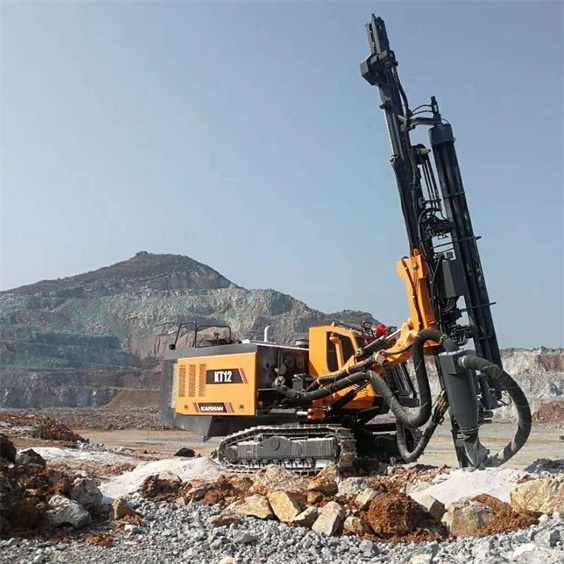

KT12 Integrated Drilling Rig
Features:
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst situation.Cylinder and wire rope feed for precise feed control and precision drilling.Suitable for various angle and horizontal bottom hole drilling.Composite material and self lubricationg bearing and maintenance free.
Auto Drill Rod Changer
Rod storage rack and auto changer. High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.
Flexible Beam
Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type beam for better resistance to pulling,pressing,cutting,bending,and twisting force.Simple deisgn for convenient maintenance and precision positioning.
Enlarged Dry Type Dust Collector
Two stage dry dust collection system with larger filtration area for auto continuous self cleaning dust collection.Convenient removal of filter elements for high efficiency maintance. Movable dust hood for clear view of hole collaring to control collaring operation.
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 22 m³/min,24bar.
Diesel Engine
Equipped with Cummins engine (China III), Reduce emissions and protect the environment.
Cab
Air Conditioning cab,Rock falling protect FOPS and Rollover proof ROPS, all view AC cab with noise and shock proof.Realm time display of drilling angle and depth.
Chassis
Track type heavy duty chassis, ±10° hydraulic oscillation on heavy duty track frame. Powerful traction force and high ground clearance for strong off road capabilities.
| Model# | *KT12* |
| Weight | 17500kgs |
| Dimension | 9830×2580m×3320mm |
| Diesel Engine | Cummins QSL8.9-C360-30,265kw/360hp/ 2200r/min |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ115-152mm(4 1/2″-6″) |
| Depth of Economical Drilling | 28m / 8.5ft |
| Number of Rods | 6+1 |
| Capacity of Screw Air Compressor | 20m³/min(706cfm) |
| Discharge Pressure of Screw Air Compressor | 2.2MPa(319Psi) |
| DTH Hammer | Standard K5 (Optional:K4,K5) |
| Drilling Rod | Standard Φ89X4000mm (Optional:Φ76X4000mm) |
| Drilling Bit | Standard Φ136mm-K5 (Optional:Φ120/125/130/146mm-K4,Φ136/140/146/152mm-K5) |
| Rotary Speed | 0-100rpm |
| Rotary Torque (Max.) | 3450N.m(Max.) |
| Lifting Force | 120KN |
| Method of Feed | Roller Chain |
| Compensation Length of Beam | 1353mm |
| Feed Stroke | 4490mm |
| Traveling Speed | 0-3.0km/h |
| Climbing Capacity | ≦25° |
| Ground Clearance | 420mm |
| Lifting Angle of Drill Boom | Down 20°,Up 47° |
| Swing Angle of Drill Boom | Left 21°,Right 50° |
| Swing Angle of Carriage | Left 35°,Right 95° |
| Pitch Angle of Carriage | 114° |
| Leveling Angle of Track | ±10° |
| Method of Dust Colllecting | Dry type (Hydraulic Cyclonic Laminar Flow) |
| Traveling Control System | Hydraulic Pilot |
| Drilling Control System | Hydraulic Pilot |
| Anti-Jamming | Automatic Electro-Hydraulic Anti-Jamming |
| Voltagge | 24V DC |
| Safe Cab | Meet the Requirements of ROPS & FOPS |
| Indoor Noise | Below 85dB(A) |
| Seat | Adjustable |
| Air-Conditioning | Standard Temperature |
| Entertainment | Radio |
