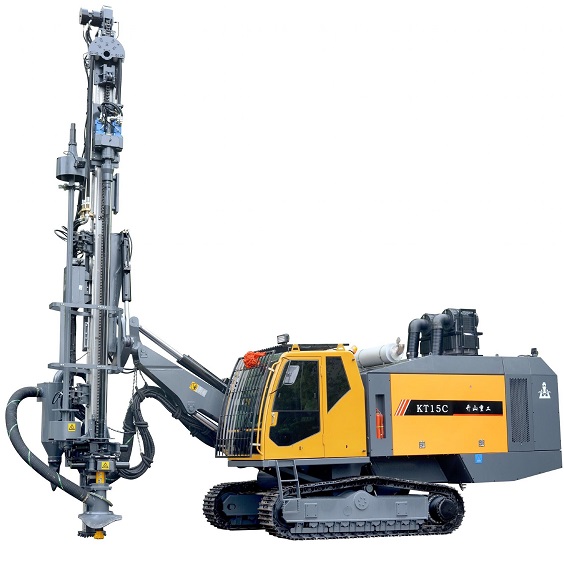

KT15C Cab Integrated Drilling Rig

  • Model#:KT15C
  • Drilling Diameter: Φ135-190mm(4 1/2"-7 1/2")
  • Capacity of Compressor: 22m³/min(777cfm)
  • Pressure of Compressor: 2.4MPa(348Psi)
  • Diesel Engine:Cummins QSZ13-C400-30,298kw/400hp/ 2200r/min

0086 18595738083

FEATURES

KT15C Integrated Drilling Rig

Features:

Powerful Rotary Head

Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.

Strong Heavy Duty Feed Carriage

New design positioning system,easier for operation in the worst situation.Cylinder and wire rope feed for precise feed control and precision drilling.Suitable for various angle and horizontal bottom hole drilling.Composite material and self lubricationg bearing and maintenance free.

Flexible Carriage

Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type Carriage for better resistance to pulling,pressing,cutting,bending,and twisting force.Simple deisgn for convenient maintenance and precision positioning.

Auto Drill Rod Changer

Rod storage rack and auto changer. High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.

Enlarged Dry Type Dust Collector

Two stage dry dust collection system with larger filtration area for auto continuous self cleaning dust collection.Convenient removal of filter elements for high efficiency maintance. Movable dust hood for clear view of hole collaring to control collaring operation.

Screw Air compressor

All-in-one surface drilling rig,build in Kaishan screw air compressor 22 m³/min,24bar.

Diesel Engine

Equipped with Cummins engine (China III), Reduce emissions and protect the environment.

Cab

Air Conditioning cab,Rock falling protect FOPS and Rollover proof ROPS, all view AC cab with noise and shock proof. Optional:Real time display of drilling angle and depth.

Chassis

Track type heavy duty chassis, ±10° hydraulic oscillation on heavy duty track frame. Powerful traction force and high ground clearance for strong off road capabilities.

SPECIFICATIONS

Model# *KT15C*
Weight 23000kgs
Dimension 11500×2716m×3540mm
Diesel Engine Cummins QSZ13-C400-30,298kw/400hp/ 2200r/min
Drilling Hardness f=6-20
Drilling Diameter Φ135-190mm(4 1/2″-7 1/2″)
Depth of Economical Drilling 35m / 115ft
Number of Rods 6+1
Capacity of  Screw Air Compressor 22m³/min(777cfm)
Discharge Pressure of Screw Air Compressor 2.4MPa(348Psi)
DTH Hammer Standard K5 (Optional:K5,K6)
Drilling Rod Standard Φ89X5000mm (Optional:Φ102X5000mm)
Drilling Bit Standard Φ152mm-K5 (Optional:Φ136/140/146/152/
157/165/178mm-K5,Φ152/165/178/190mm-K6)
Rotary Speed 0-118rpm
Rotary Torque (Max.) 4100N.m(Max.)
Lifting Force 180KN
Method of Feed Roller Chain
Compensation Length of Carriage 1800mm
Feed Stroke 5560mm
Traveling Speed 0-3.0km/h
Climbing Capacity ≦25°
Ground Clearance 430mm
Lifting Angle of  Drill Boom Down 23°,Up 52°
Swing Angle of  Drill Boom Left  15°,Right  42°
Swing Angle of  Carriage Left 33°,Right 97°
Pitch Angle of  Carriage 125°
Leveling Angle of Frame ±10°
Method of Dust Collecting Dry type (Hydraulic Cyclonic Laminar Flow)(Optional: Wet Type)
Method of Extension Rod Automatic Unloading Rod
Method of Automatic Anti-Jamming Electro-Hydraulic Control Anti-Sticking
Method of Drilling Rod Lubrication Automatic Oil Injection and Lubrication
Protection of Thread of Drilling Rod Equipped with the Floating Joint to Protect theThread of Drilling Rod
Drilling Display Real-time Display of Drilling Angle and Depth
