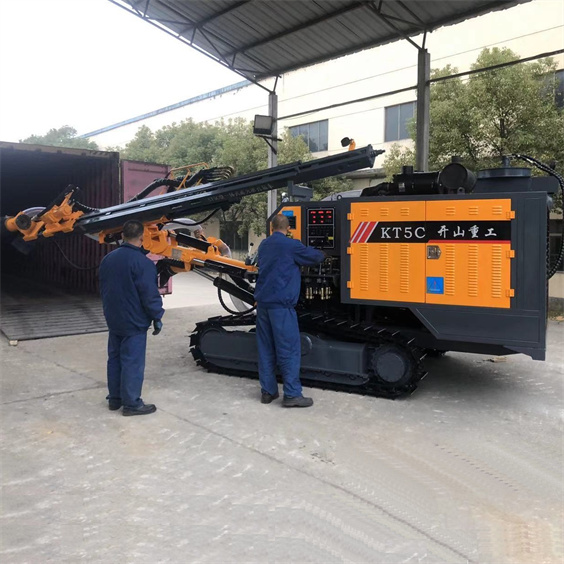

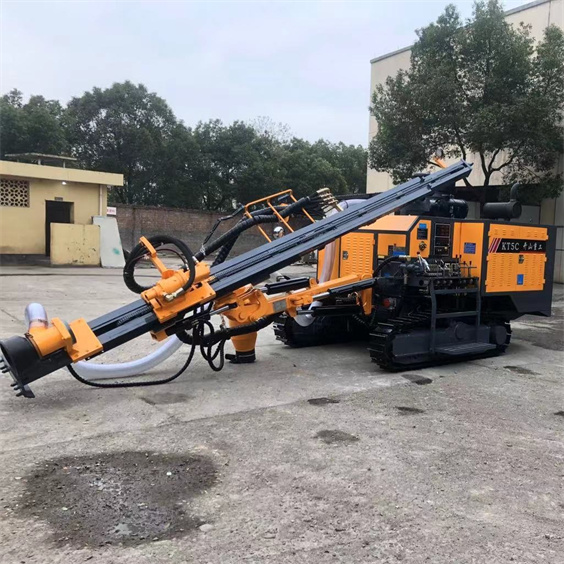

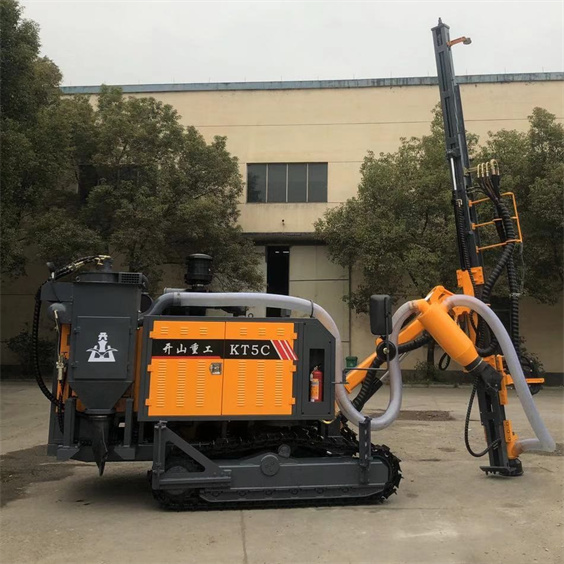

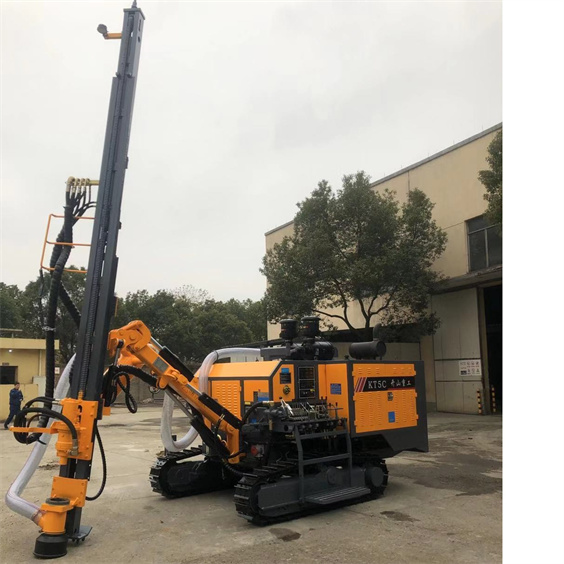

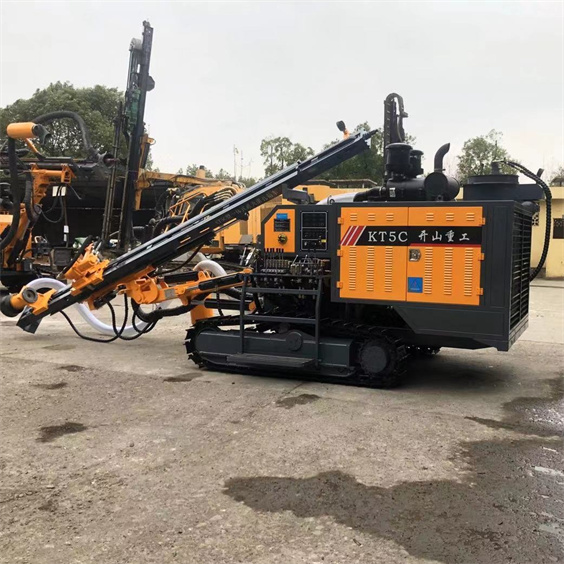

Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst
situation.Cylinder & rope feed mechanism for smooth operation.Nylon
slide piece for longer feed beam service life.The guide rail is installed
in an inclined way,making operation and observations easier
Flexible Boom
Multi-directional Drilling Design.For complex drilling conditions, 350mm ground clearance for horizontal drilling applications,is
suitably qualified for horizontal drilling at a low level.
Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinderis more reliable,the system flow is increased,and the rotary drilling speed is increased
Enlarged Dry Type Dust Collector
It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Construction Steel Crawler
Equipped with speed reduction tramming system and standard excavator track for compact structure.Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.
Diesel Engine
Equipped with the Yuchai six-cylinder engine (China III), Reduce emissions and protect the environment.
Track Oscillation for better tramming & cross terrain performance
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 12 m³/min,15bar.
Control Panel
All controls integrated on the control panel for convenient operation by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.

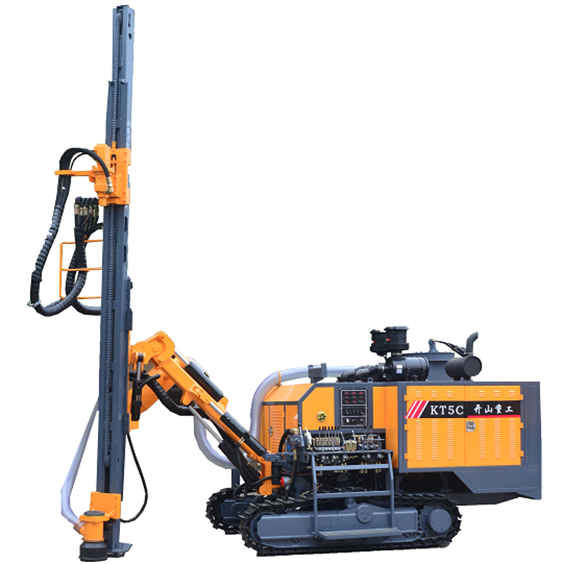

| Model# | *KT5C* |
| Weight | 8000kgs |
| Dimension | 7800×2300m×2500mm |
| Diesel Engine | Yuchai YC6J220-T303,162kw/220hp |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ80-115mm(3″-4 1/2″) |
| Depth of Economical Drilling | 25m / 7.6ft |
| Capacity of Screw Air Compressor | 12m³/min(425cfm) |
| Discharge Pressure of Screw Air Compressor | 1.5MPa(218Psi) |
| DTH Hammer | Standard M3 (Optional:K3,K4) |
| Drilling Rod | Standard Φ64X3000mm (Optional:Φ76X3000mm) |
| Drilling Bit | Standard Φ90mm-M3 (Optional:Φ90mm-M3, Φ90/95/100/105mm-K3,Φ105/110/115mm-K4) |
| Rotary Speed | 0-120rpm |
| Rotary Torque (Max.) | 1680N.m(Max.) |
| Lifting Force | 25KN |
| Feed Stroke | 3000mm |
| Traveling Speed | 2.5/4.0km/h |
| Climbing Capacity | ≦30° |
| Ground Clearance | 430mm |
| Lifting Angle of Drill Boom | Down 26°,Up 54° |
| Pitch Angle of Carriage | 125° |
| Swing Angle of Carriage | Left 47°,Right 47° |
| Lateral Horizontal Swing Angle of Carriage | Right -15° ~ 97° |
| Swing Angle of Drill Boom | Left 15°,Right 53° |
| Leveling Angle of Frame | Down 9°,Up 10° |
| Compensation Length of Beam | 900mm |
| Method of Dust Colllecting | Dry type (Hydraulic Cyclonic Laminar Flow) |
