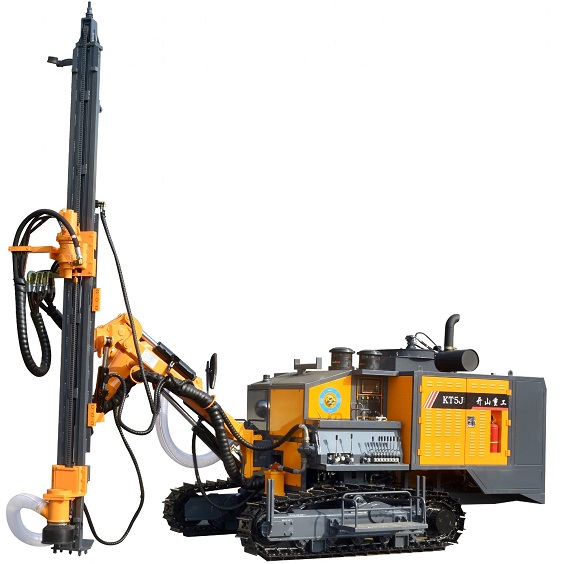

KT5J Integrated Drilling Rig
Features:
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Carriage
New design positioning system,easier for operation in the worst
situation.Cylinder & rope feed mechanism for smooth operation.Nylon
slide piece for longer feed Carriage service life.The guide rail is installed in an inclined way,making operation and observations easier”
Flexible Boom
Multi-directional Drilling Design.For complex drilling conditions, 330mm ground clearance for horizontal drilling applications,is suitably qualified for horizontal drilling at a low level.
Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinderis more reliable,the system flow is increased,and therotary drilling speed is increased.
Enlarged Dry Type Dust Collector
It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Construction Steel Crawler
Equipped with speed reductiontramming system and standard excavator track for compact structure.Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.
Diesel Engine
Equipped with the Yuchai six-cylinder engine (China III), Reduce emissions and protect the environment.
Track Oscillation for better tramming & cross terrain performance
Screw Air Compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 12 m³/min,15bar.
| Model# | *KT5J* |
| Weight | 7500kgs |
| Dimension | 7300×2300m×2400mm |
| Diesel Engine | Yuchai YC6J220-T303,162kw/220hp |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ80-105mm(3″-4 1/2″) |
| Depth of Economical Drilling | 20m /66ft |
| Capacity of Screw Air Compressor | 12m³/min(425cfm) |
| Discharge Pressure of Screw Air Compressor | 1.5MPa(218Psi) |
| DTH Hammer | Standard M3 (Optional:K3,K4) |
| Drilling Rod | Standard Φ64X3000mm (Optional:Φ76X3000mm) |
| Drilling Bit | Standard Φ90mm-M3 (Optional:Φ90mm-M3, Φ90/95/100/105mm-K3,Φ105/110/115mm-K4) |
| Rotary Speed | 0-120rpm |
| Rotary Torque (Max.) | 1400N.m(Max.) |
| Lifting Force | 25KN |
| Feed Stroke | 3000mm |
| Traveling Speed | 2.5/4.0km/h |
| Climbing Capacity | ≦25° |
| Ground Clearance | 330mm |
| Lifting Angle of Drill Boom | Down 27°,Up 60° |
| Pitch Angle of Carriage | 147° |
| Swing Angle of Carriage | Left 37°,Right 40° |
| Lateral Horizontal Swing Angle of Carriage | Right -1.7°, Left 91.5° |
| Swing Angle of Drill Boom | Left 44°,Right 39° |
| Leveling Angle of Frame | Down 10°,Up 10° |
| Compensation Length of Carriage | 900mm |
| Method of Dust Colllecting | Dry type (Hydraulic Cyclonic Laminar Flow) |
