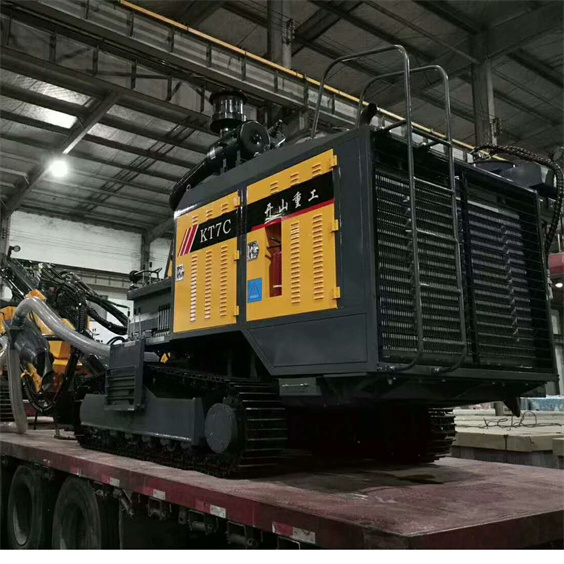

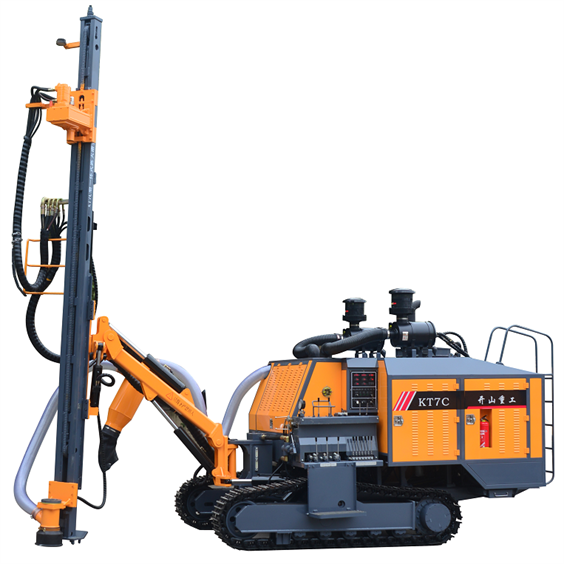

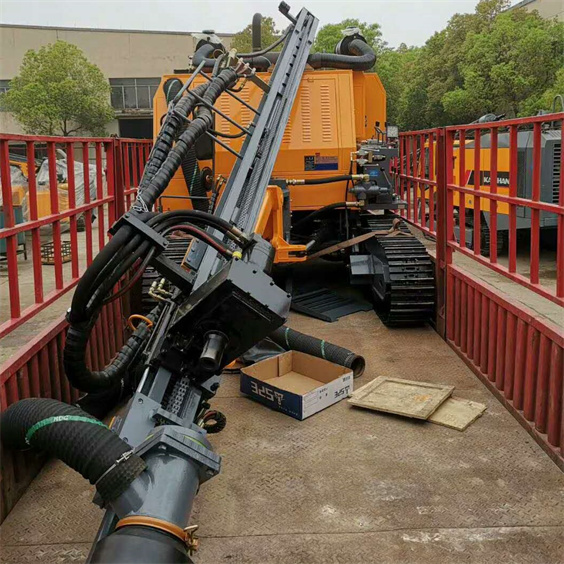

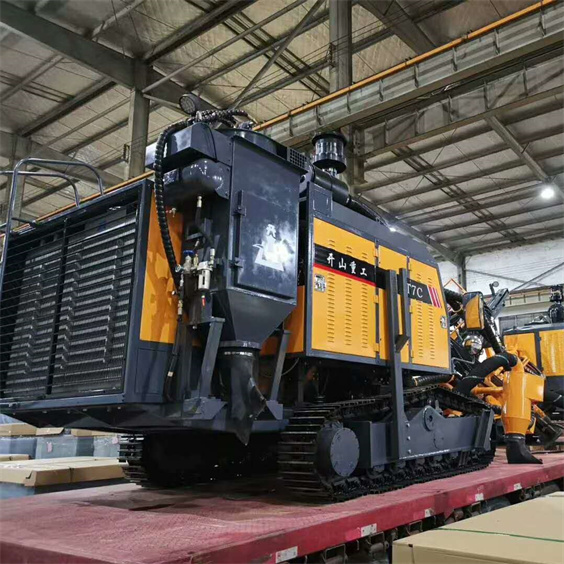

KT7C Integrated Drilling Rig

  • Model#:KT7C
  • Drilling Diameter:Φ80-115mm(3"-4 1/2")
  • Capacity of Compressor: 15m³/min(530cfm)
  • Pressure of Compressor: 1.7MPa(250Psi)
  • Diesel Engine: Yuchai YC6A260-T30,195kw/265hp

0086 18595738083

FEATURES

KT7C Integrated Drilling Rig

Powerful Rotary Head

Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.

Strong Heavy Duty Feed Beam

New design positioning system,easier for operation in the worst

situation.Cylinder & rope feed mechanism for smooth operation.Nylon

slide piece for longer feed beam service life.The guide rail is installed

in an inclined way,making operation and observations easier”

Flexible Boom

Multi-directional Drilling Design.For complex drilling conditions,

350mm ground clearance for horizontal drilling applications,is

suitably qualified for horizontal drilling at a low level.

Hydraulic System

The hydraulic system is upgraded,the hydraulic cylinderis more reliable,the system flow is increased,and therotary drilling speed is increased

Enlarged Dry Type Dust Collector

It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.

Construction Steel Crawler

Equipped with speed reduction tramming system and standard excavator track for compact structure.Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.

Diesel Engine

Equipped with the Yuchai six-cylinder engine (China III), Reduce emissions and protect the environment.

Track Oscillation for better tramming & cross terrain performance

Screw Air compressor

All-in-one surface drilling rig,build in Kaishan screw air compressor 15 m³/min,17bar.

Control Panel

All controls integrated on the control panel for convenient operation by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.”

Walking Hydraulic Motor

Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.

SPECIFICATIONS

Model# *KT7C*
Weight 9600kgs
Dimension 8000×2300m×2700mm
Diesel Engine Yuchai YC6A260-T30,195kw/265hp
Drilling Hardness f=6-20
Drilling Diameter Φ80-115mm(3″-4 1/2″)
Depth of Economical Drilling 25m / 7.6ft
Capacity of  Screw Air Compressor 15m³/min(530cfm)
Discharge Pressure of Screw Air Compressor 1.7MPa(250Psi)
DTH Hammer Standard K3 (Optional:M3,K4)
Drilling Rod Standard Φ64X3000mm (Optional:Φ76X3000mm)
Drilling Bit Standard Φ90mm-K3 (Optional:Φ90mm-M3,
Φ90/95/100/105mm-K3,Φ105/110/115mm-K4)
Rotary Speed 0-120rpm
Rotary Torque (Max.) 2450N.m(Max.)
Lifting Force 25KN
Feed Stroke 3000mm
Traveling Speed 2.5/4.0km/h
Climbing Capacity ≦30°
Ground Clearance 430mm
Lifting Angle of Drill Boom Down 42°,Up 28°
Pitch Angle of   Carriage 129°
Swing Angle of  Carriage Left 35°,Right 38°
Lateral Horizontal Swing Angle of Carriage Right  42° ~ 89°
Swing Angle of Drill Boom Left 60°,Right  39°
Leveling Angle of Frame Down 9°,Up 10°
Compensation Length of Beam 900mm
Method of Dust Colllecting Dry type (Hydraulic Cyclonic Laminar Flow)
