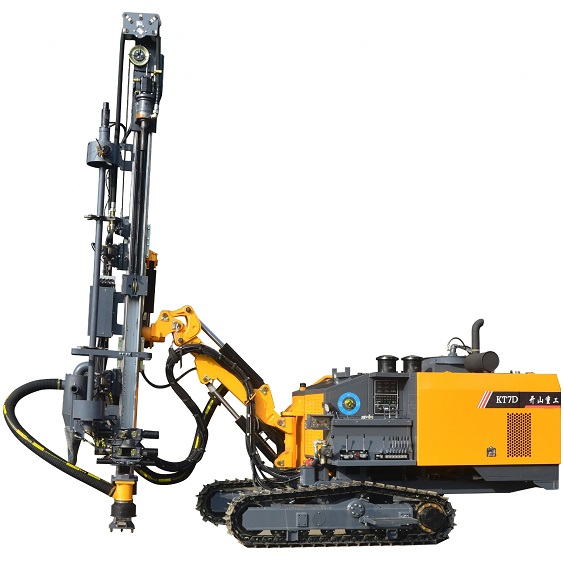

KT7D Integrated Drilling Rig
Features:
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Carriage
New design positioning system,easier for operation in the worst
situation.Cylinder & rope feed mechanism for smooth operation.Nylon
slide piece for longer feed Carriage service life.The guide rail is installed in an inclined way,making operation and observations easier.
Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinderis more reliable,the system flow is increased,and therotary drilling speed is increased.
Flexible Boom
Multi-directional Drilling Design.For complex drilling conditions,
430mm ground clearance for horizontal drilling applications,is
suitably qualified for horizontal drilling at a low level.
Enlarged Dry Type Dust Collector
It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Auto Drill Rod Changer
Rod storage rack and auto changer. High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.
Construction Steel Crawler
Equipped with speed reduction tramming system and standard excavator track for compact structure.Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failurerate.
Diesel Engine
Equipped with the Yuchai or Cummins engine (China III), Reduce emissions and protect the environment.
Track Oscillation for better tramming & cross terrain performance
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 15 m³/min,18bar.
Control Panel
All controls integrated on the control panel for convenient operation
by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.
| Model# | *KT7D* |
| Weight | 10000kgs |
| Dimension | 8000×2300m×2700mm |
| Diesel Engine | Yuchai YCA07240-T300,176kw/300hp |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ90-130mm(3.5″-5 1/2″) |
| Depth of Economical Drilling | 24m / 79ft |
| Capacity of Screw Air Compressor | 15m³/min(530cfm) |
| Discharge Pressure of Screw Air Compressor | 1.8MPa(261Psi) |
| DTH Hammer | Standard K3 (Optional:M3,K4) |
| Drilling Rod | Standard Φ64X3000mm (Optional:Φ76X3000mm) |
| Drilling Bit | Standard Φ90mm-K3 (Optional:Φ90mm-M3, Φ90/95/100/105mm-K3,Φ105/110/115mm-K4) |
| Rotary Speed | 0-180/0-120rpm |
| Rotary Torque (Max.) | 1560/1900N.m(Max.) |
| Lifting Force | 22.58KN |
| Feed Stroke | 3090mm |
| Traveling Speed | 2.5/4.0km/h |
| Climbing Capacity | ≦25° |
| Ground Clearance | 430mm |
| Lifting Angle of Drill Boom | Down 16°,Up 48° |
| Pitch Angle of Carriage | 147° |
| Swing Angle of Carriage | Left 52°,Right 53° |
| Swing Angle of Drill Boom | Left 50°,Right 58° |
| Leveling Angle of Frame | ±10° |
| Number of Rods | 7+1 |
| Compensation Length of Carriage | 900mm |
| Method of Dust Colllecting | Dry type (Hydraulic Cyclonic Laminar Flow) |
| Method of Extension Rod | Automatic Unloading Rod |
| Method of Drilling Rod Lubrication | Automatic Oil Injection and Lubrication |
