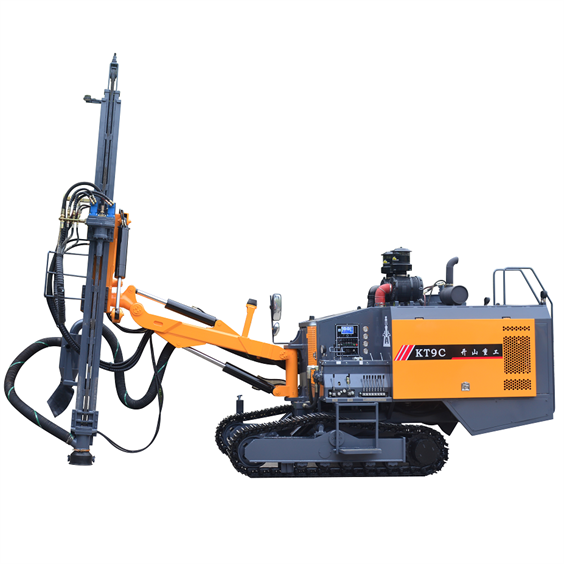

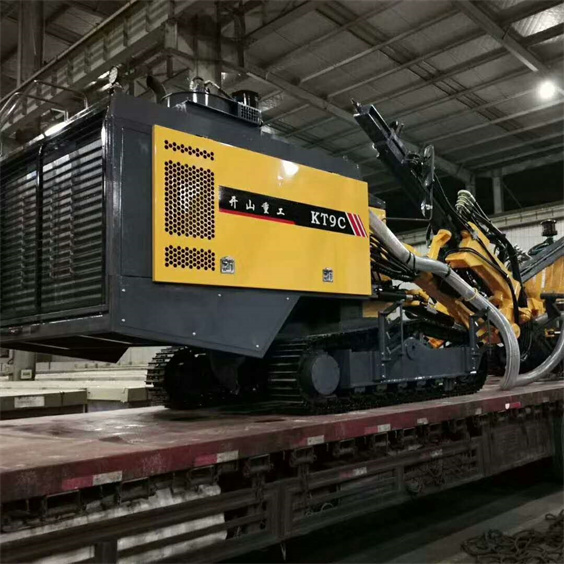

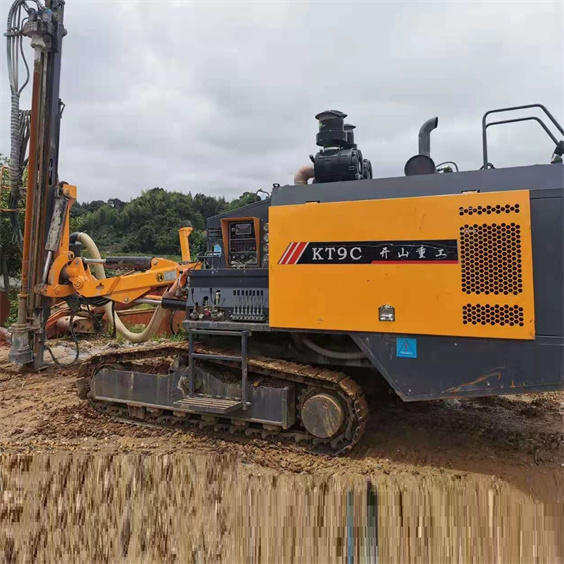

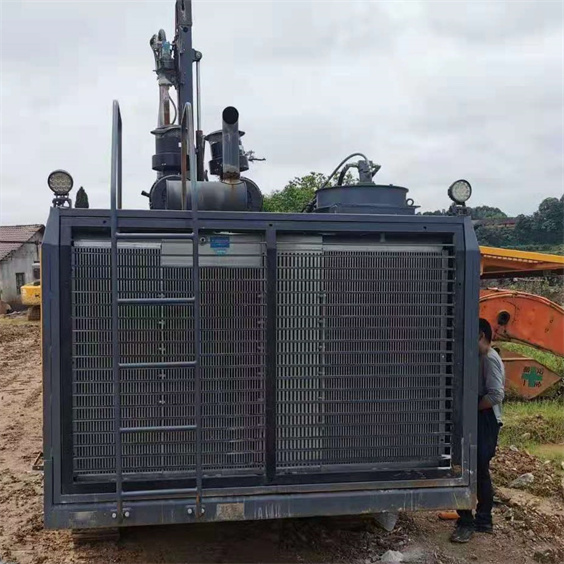

KT9C Integrated Drilling Rig
Features:
Powerful Rotary Head
Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.
Strong Heavy Duty Feed Beam
New design positioning system,easier for operation in the worst
situation.Cylinder & rope feed mechanism for smooth operation.Nylon
slide piece for longer feed beam service life.The guide rail is installed
in an inclined way,making operation and observations easier
Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinderis more reliable,the system flow is increased,and therotary drilling speed is increased
Flexible Boom
Multi-directional Drilling Design.For complex drilling conditions,
350mm ground clearance for horizontal drilling applications,is
suitably qualified for horizontal drilling at a low level.
Enlarged Dry Type Dust Collector
It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Screw Air compressor
All-in-one surface drilling rig,build in Kaishan screw air compressor 15 m³/min,17bar.
Construction Steel Crawler
Equipped with speed reduction tramming system and standard excavator track for compact structure.Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.
Diesel Engine
Equipped with the Yuchai or Cummins engine (China III), Reduce emissions and protect the environment.
Track Oscillation for better tramming & cross terrain performance
Control Panel
All controls integrated on the control panel for convenient operation
by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.
| Model# | *KT9C* |
| Weight | 12000kgs |
| Dimension | 8150×2260m×2950mm |
| Diesel Engine | Yuchai YCA08280-T300,205kw/280hp or Cummins QSC8.3-C260-30 ,194kw/260hp |
| Drilling Hardness | f=6-20 |
| Drilling Diameter | Φ90-125mm(4″-5″) |
| Depth of Economical Drilling | 25m / 7.6ft |
| Capacity of Screw Air Compressor | 17m³/min(600cfm) |
| Discharge Pressure of Screw Air Compressor | 1.7MPa(250Psi) |
| DTH Hammer | Standard K4 (Optional:K3,K4) |
| Drilling Rod | Standard Φ76X3000mm (Optional:Φ76X3000mm) |
| Drilling Bit | Standard Φ115mm-K4 (Optional:Φ90/100/105mm-K3,Φ105/110/120/125mm-K4) |
| Rotary Speed | 0-120rpm |
| Rotary Torque (Max.) | 2800N.m(Max.) |
| Lifting Force | 32KN |
| Feed Stroke | 3490mm |
| Traveling Speed | 2.5/4.0km/h |
| Climbing Capacity | ≦25° |
| Ground Clearance | 430mm |
| Lifting Angle of Drill Boom | Down 20°,Up 57° |
| Pitch Angle of Carriage | 114° |
| Swing Angle of Carriage | Left 95°,Right 35° |
| Swing Angle of Drill Boom | Left 50°,Right 18° |
| Leveling Angle of Frame | ±10° |
| Compensation Length of Beam | 900mm |
| Method of Dust Colllecting | Dry type (Hydraulic Cyclonic Laminar Flow) |
