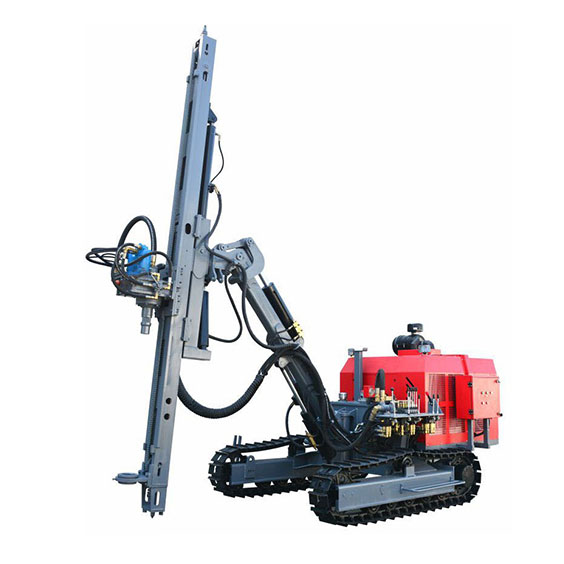

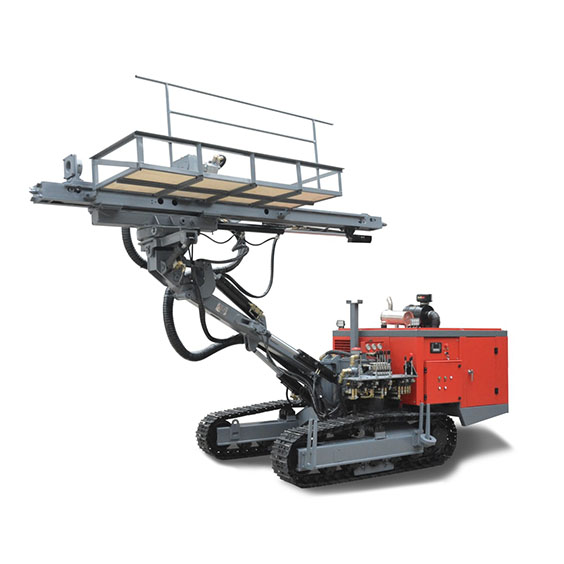

SN50DE Anchor Drilling Rig

  • Engine: Diesel Engine 79kw+ Electricl Motor 55kw
  • Max.Drilling Depth: 50m/164ft
  • Anchor Hole Diameter: 90-200mm(3 1/2"-8")

0086 18595738083

FEATURES

Wide Range of Applications

The SN50DE anchor drill rig/Soil nailing drill rig is equipped with two motors: diesel engier and electric motor, which greatly increases the adaptability to the environment. Mainly used in the reinforcement of anchor cables for hydroelectric power stations, highway and railway mountain slopes, advance support of tunnel pipe sheds, cable stayed pile anchors for foundation pits, anti-floating anchors, ground source heat pump wells, roadbed reinforcement, hydropower engineering dam foundations and Dam body anti-seepage treatment, drainage hole, mine and quarry drilling, micro pile hole and other projects.

Double Power System

It integrates a diesel engine and a high-power motor, two driving methods, and has a stronger adaptability to the environment.

Control System

Imported intelligent control system, liquid crystal display interface, multi-language intelligent controller, easy to operation; with self-diagnosis failure, alarm and shutdown protection functions.

Drilling Operating Area

The drill arm component is equipped with a motor slewing support, which expands the range of the propeller’s amplitude, which can effectively meet various operational requirements

Walking System

The integral welded chassis is equipped with widened crawler pads. The whole machine has good stability, and is more suitable for walking on the construction site in the mud. It is not easy to sink.

Double Rotary Motor

Adopt double rotary motor, and equipped with manual rotary valve.High-speed, low-torque and low-speed high-torque,total two adjustable, better adapt to different operating requirements.

Multiple Drilling Methods

Twist drill rod,DTH hammer, casings, etc. can be used for sand, clay, rock, etc.

SPECIFICATIONS

Model# SN50DE
Application
Rock Hardness F=6-20
Drilling Dia. 90-200mm(3 1/2″-8″)
Drilling Depth 50m/164ft
Walking System
Walking Speed 2.5km/h
Climbing Capacity 25°
Rotation Head
Rotary Torque Fast 2750N.m,Slow 5500N.m
Rotary Speed Fast 125rpm,Slow 62rpm
DTH hammer
Hammer Selection of options 3”,4″,5″,6″DTH hammer
Drill Rod Selection of options
Drill Rod Length 1-3m/3.3-9.8ft
Drill Rod Dia. Φ64,76,89,102mm
Propulsion System
Feed Stroke 3400mm
Lifting Force 45KN
Max. Horizontal Height 4m/13ft
Motor Power
Diesel Engine Yuchai 79 kw / HP
Electric Motor 55kw
Working Pressure 0.7-2.0MPa(180-508Psi)
Air consumption 10-22m³/min(353-883cfm)
Ground Clearance
Ground Clearance 350mm
Weight & Dimension
Weight 6500kgs
Dimension 6500×2200m×2500mm
Applicable Stratum and Drilling Method
Application Complicated geological conditions:Rock,Sand,Soil etc.
Drilling Method Top drive hydraulic rotary and DTH Drilling,Twist Drilling and Casing Drilling
