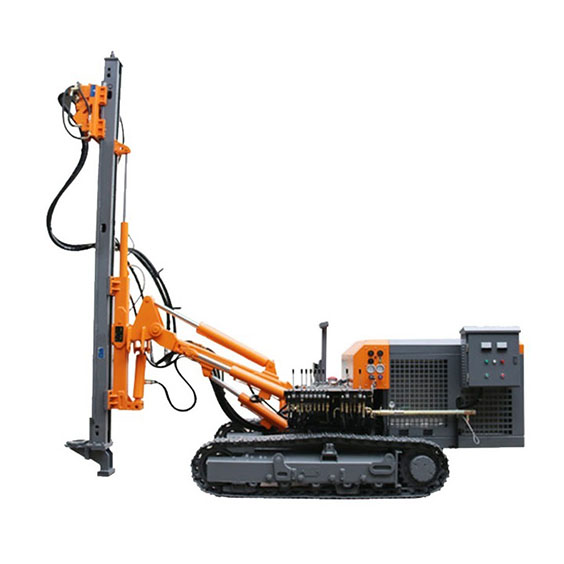

SN60DE-1 Anchor Drilling Rig

  • Engine: Diesel Engine 58kw+ Electricl Motor 55kw
  • Max.Drilling Depth: 60m/197ft
  • Anchor Hole Diameter: 90-203mm(3 1/2"-8")

0086 18595738083

FEATURES

Double Power System

The power standard of this anchor drill rig is dual power. The standard configuration is a φ76mm three-meter drill pipe or a variety of twist drill pipes. It is a dual-use model of diesel engine and electric motor, which can be switched at any time.

Wide Range of Applications

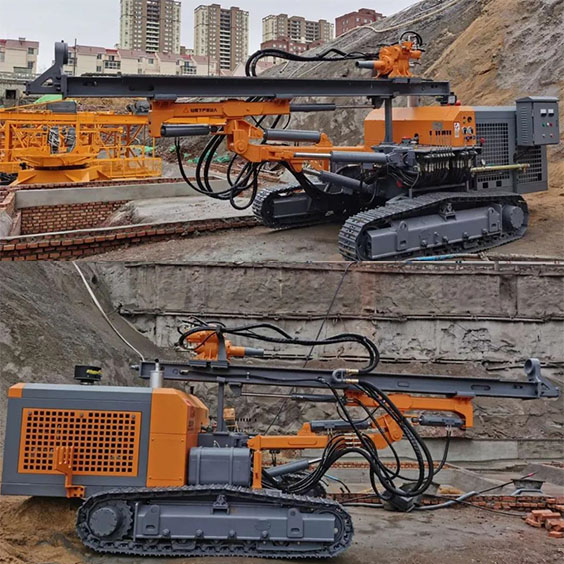

The diesel-electric dual-purpose anchor drill rig machine is mainly used for highway, railway, water conservancy, hydropower facilities, landslide management projects, control of building displacement and other high slope rock mass anchoring projects, urban deep foundation pit support and foundation reinforcement, etc., with torque Large, strong propulsion and high durability. In April 2020, the SN60DE anchor drill rig was upgraded. The upgraded machine has greater torque, stronger propulsion, higher durability and more stable product quality.

High Torque Rotary Head

The new rotary head improves the structural strength of the gear box and other structures, further increasing the product life and stability while retaining the speed adjustment, adapting to different working conditions, and the design torque reaches 8000N/m, the torque can be selected in a wider range. The diameter range of rock drilling is larger, which can easily deal with stuck drills, and the nylon slide is used to connect with the guide rail, which is easy to replace. It can be widely used in foundation pit anchors, heel pipes, large-diameter twist drill pipe operations;

High Quality 20A Roller Chain

The new propulsion rotary system adopts 20A roller chain, improve load capacity and transmission efficiency, It has higher vibration absorption capacity, which can better protect the shaft and oil cylinder, and at the same time avoid the occurrence of chain dislocation caused by sediment accumulation in the original pulley.

Promote Beam Guide Rail Structure Upgrade

The propulsion beam guide rail is changed to a flat steel slide rail structure, and the wear-resistant block increases the clearance adjustment function, which can be adjusted according to the use and wear conditions to ensure that the sliding clearance of the rotary head propulsion lifting is in an ideal state.

Operation Systen

Humanized design, centralized control handle and instrument layout, reasonable layout, easy operation, the height of the handle is consistent with the natural bending height of the human arm, which effectively reduces the fatigue of long-term operation.

Filtering System

High-efficiency, large-flow and high-precision air filter, ensure the safety of engine intake

Walking System

Imported chassis of walking motor,walking driving device is equal to of 6-ton excavator driving device, integrated walking and braking, freely towing air compressor and climbing slope.

SPECIFICATIONS

Model# SD60DE-1
Application
Rock Hardness F=6-20
Drilling Dia. 90-203mm(3 1/2″-8″)
Drilling Depth 60m/197ft
Walking System
Walking Speed 2.5km/h
Climbing Capacity 25°
Rotation Head
Rotary Torque 4600N.m
Rotary Speed Fast 160rpm,Slow 60rpm
DTH hammer
Hammer Selection of options 3”,4″,5″,6″,8″DTH hammer
Drill Rod Selection of options
Drill Rod Length 1-3m/3.3-9.8ft
Drill Rod Dia. Φ64,76,89mm
Propulsion System
Feed Stroke 3400mm
Lifting Force 80KN
Max. Horizontal Height 4m/13ft
Motor Power
Diesel Engine 玉柴 Yuchai YC4DK80 58kW
Electric Motor 55kw
Working Pressure 0.7-2.0MPa(180-508Psi)
Air consumption 10-22m³/min(353-777cfm)
Ground Clearance
Ground Clearance 300mm
Weight & Dimension
Weight 5000kgs
Dimension 5800×2250m×2250mm
Applicable Stratum and Drilling Method
Application Complicated geological conditions:Rock,Sand,Soil etc.
Drilling Method Top drive hydraulic rotary and DTH Drilling,Twist Drilling and Casing Drilling
