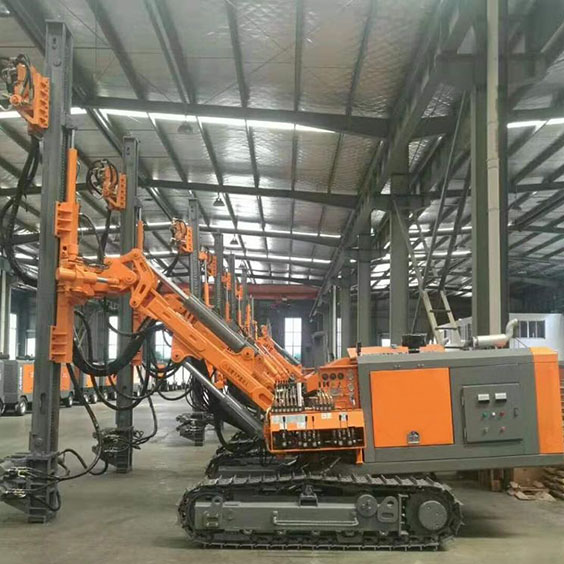

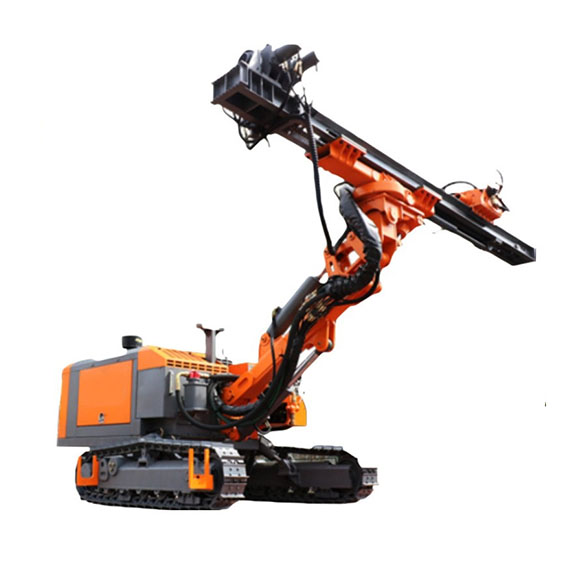

The diesel-electric dual-purpose anchor drill rig machine is mainly used for highway, railway, water conservancy, hydropower facilities, landslide management projects, control of building displacement and other high slope rock mass anchoring projects, urban deep foundation pit support and foundation reinforcement, etc., with torque Large, strong propulsion and high durability.
The power standard of this anchor drill rig is dual power. The standard configuration is a φ76mm three-meter drill pipe or a variety of twist drill pipes. It is a dual-use model of diesel engine and electric motor, which can be switched at any time.

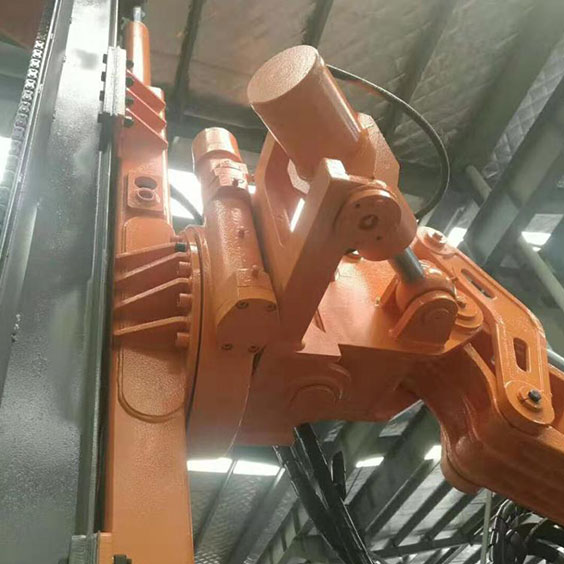

The high torque double rotary motor is used to drive the rotary head, which increases the torque of the drilling rig and can reach a maximum of 5600N.m, which makes its rock drilling aperture range wider, and can be widely used in foundation pit anchors, heel pipes, large aperture twists and drill pipe operation.
The rotary is with two-speed switching valve, is easy to operate and can meet the needs of different torques and speeds. Equipped with a rod unloading device andeasy unloading rods;
Standard assembly plunger motor, international construction machinery walking track, more powerful climbing and more reliable quality.
| Model# | SD60DE-2 |
| Application | |
| Rock Hardness | F=6-20 |
| Drilling Dia. | 90-250mm(3 1/2″-10″) |
| Drilling Depth | 60m/197ft |
| Walking System | |
| Walking Speed | 2.5km/h |
| Climbing Capacity | 25° |
| Rotation Head | |
| Rotary Torque | 5600N.m |
| Rotary Speed | Fast 160rpm,Slow 60rpm |
| DTH hammer | |
| Hammer Selection of options | 3”,4″,5″,6″,8″DTH hammer |
| Drill Rod Selection of options | |
| Drill Rod Length | 1-3m/3.3-9.8ft |
| Drill Rod Dia. | Φ64,76,89mm |
| Propulsion System | |
| Feed Stroke | 3400mm |
| Lifting Force | 80KN |
| Max. Horizontal Height | 4m/13ft |
| Motor Power | |
| Diesel Engine | 玉柴 Yuchai 73.5kW |
| Electric Motor | 55kw |
| Working Pressure | 0.7-2.0MPa(180-508Psi) |
| Air consumption | 10-26m³/min(353-918cfm) |
| Ground Clearance | |
| Ground Clearance | 300mm |
| Weight & Dimension | |
| Weight | 8000kgs |
| Dimension | 6900×2270m×2600mm |
| Applicable Stratum and Drilling Method | |
| Application | Complicated geological conditions:Rock,Sand,Soil etc. |
| Drilling Method | Top drive hydraulic rotary and DTH Drilling,Twist Drilling and Casing Drilling |
