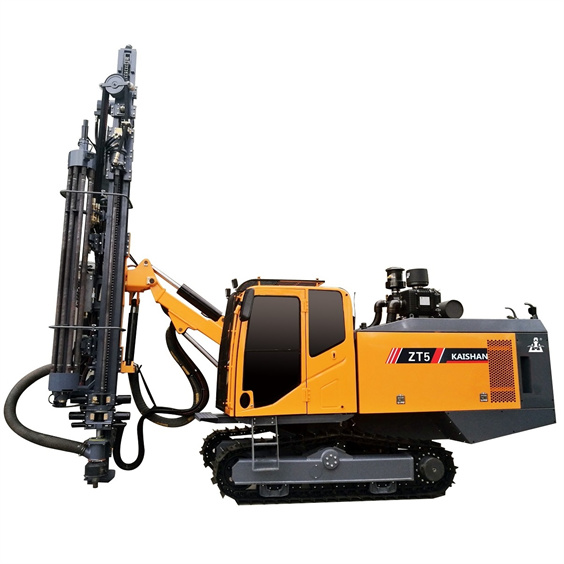

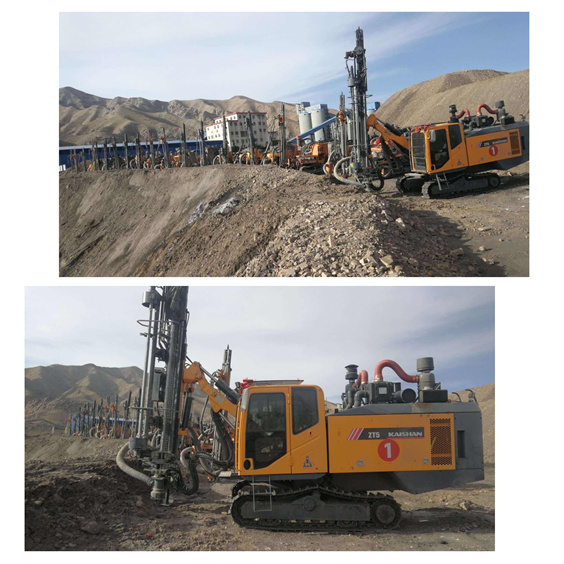

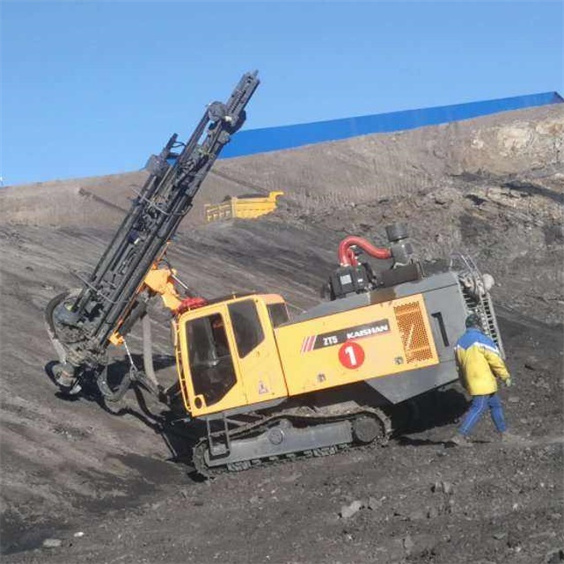

ZT5 CAB Integrated Drilling Rig

  • Model#: ZT5
  • Drilling Diameter: Φ90-115mm(4"-5")
  • Capacity of Compressor: 12m³/min(425cfm)
  • Pressure of Compressor: 1.5MPa(218Psi)
  • Diesel Engine: Yuchai YCA07240-T300,176kw/240hp/ 2200r/min

0086 18595738083

FEATURES

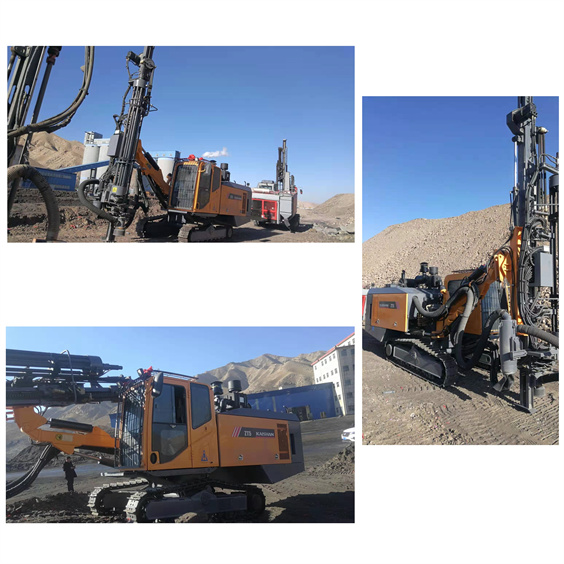

ZT5 Integrated Drilling Rig

Features:

Powerful Rotary Head

Big and strong designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.

Strong Heavy Duty Feed Beam

New design positioning system,easier for operation in the worst situation.Cylinder and wire rope feed for precise feed control and precision drilling.Suitable for various angle and horizontal bottom hole drilling.Composite material and self lubricationg bearing and maintenance free.

Auto Drill Rod Changer

Rod storage rack and auto changer. High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.

Flexible Beam

Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type beam for better resistance to pulling,pressing,cutting,bending,and twisting force.Simple deisgn for convenient maintenance and precision positioning.

Enlarged Dry Type Dust Collector

Two stage dry dust collection system with larger filtration area for auto continuous self cleaning dust collection.Convenient removal of filter elements for high efficiency maintance. Movable dust hood for clear view of hole collaring to control collaring operation.

Screw Air compressor

All-in-one surface drilling rig,build in Kaishan screw air compressor 12 m³/min,15bar.

Diesel Engine

Equipped with Yuchai engine (China III), Reduce emissions and protect the environment.

Cab

Air Conditioning cab,Rock falling protect FOPS and Rollover proof ROPS, all view AC cab with noise and shock proof. Optional:Realm time display of drilling angle and depth.

Chassis

Track type heavy duty chassis, ±10° hydraulic oscillation on heavy duty track frame. Powerful traction force and high ground clearance for strong off road capabilities.

SPECIFICATIONS

Model# *ZT5*
Weight 13800kgs
Dimension 8850×2180m×2830mm
Diesel Engine Yuchai YCA07240-T300,176kw/240hp/ 2200r/min
Drilling Hardness f=6-20
Drilling Diameter Φ90-115mm(4″-5″)
Depth of Economical Drilling 24m / 7.9ft
Number of Rods 7+1
Capacity of  Screw Air Compressor 12m³/min(425cfm)
Discharge Pressure of Screw Air Compressor 1.5MPa(218Psi)
DTH Hammer Standard M3 (Optional:K3,K4)
Drilling Rod Standard Φ64X3000mm (Optional:Φ76X3000mm)
Drilling Bit Standard Φ90mm-M3
(Optional:Φ90/95/100/105mm-K3,Φ105/110/115mm-K4)
Rotary Speed 0-120rpm
Rotary Torque (Max.) 1680N.m(Max.)
Lifting Force 120KN
Method of Feed Motor + Roller Chain
Compensation Length of Beam 1200mm
Feed Stroke 3490mm
Traveling Speed 0-3.0km/h
Climbing Capacity ≦25°
Ground Clearance 430mm
Lifting Angle of Drill Boom Down 20°,Up 47°
Swing Angle of Drill Boom Left 20°,Right  50°
Swing Angle of  Carriage Left 35°,Right 95°
Pitch Angle of  Carriage 120°
Leveling Angle of Track ±10°
Method of Dust Colllecting Dry type (Hydraulic Cyclonic Laminar Flow)
Traveling Control System Hydraulic Pilot
Drilling Control System Hydraulic Pilot
Anti-Jamming Automatic Electro-Hydraulic Anti-Jamming
Voltagge 24V DC
Safe Cab Meet the Requirements of ROPS & FOPS
Indoor Noise Below 85dB(A)
Seat Adjustable
Air-Conditioning Standard Temperature
Entertainment Radio
